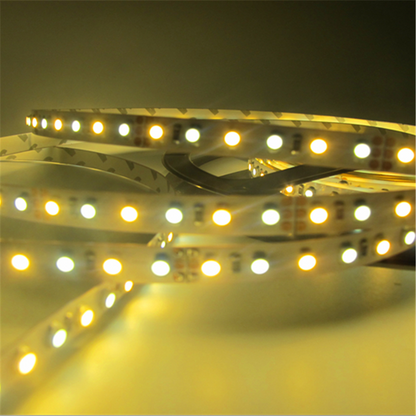

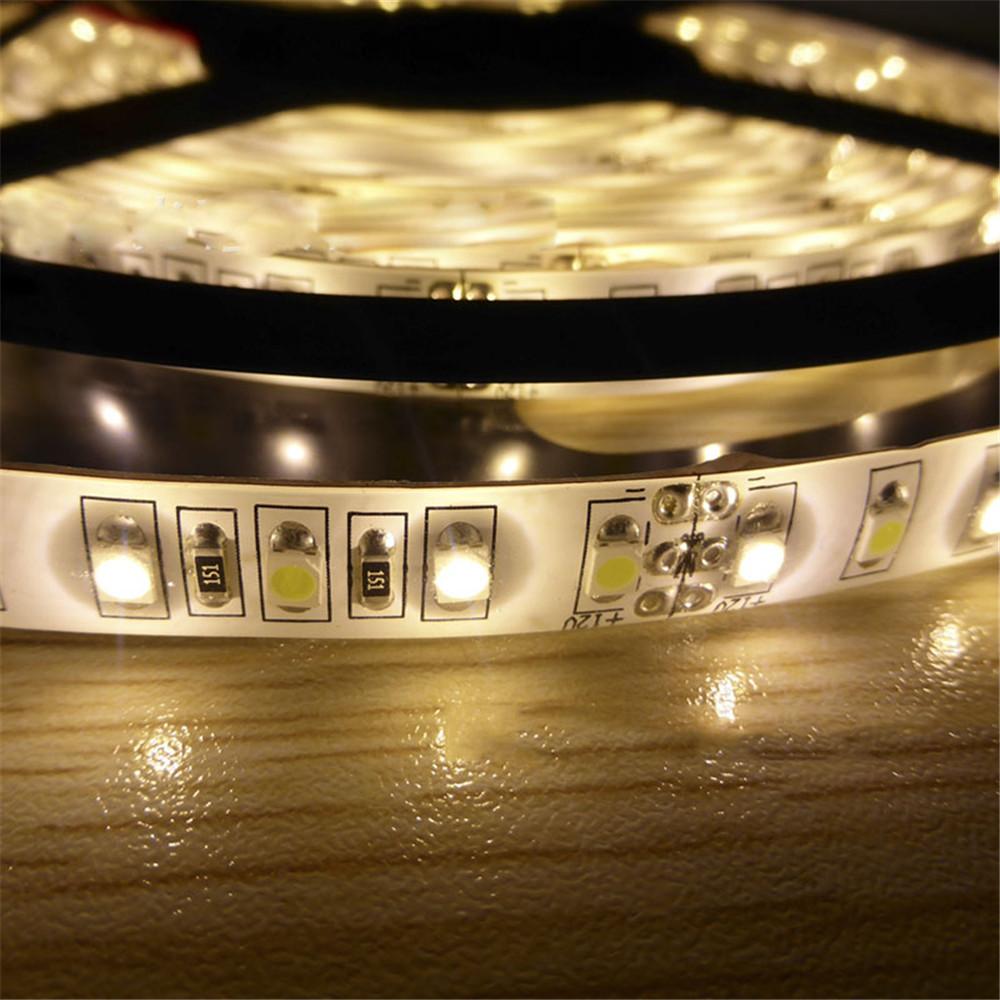

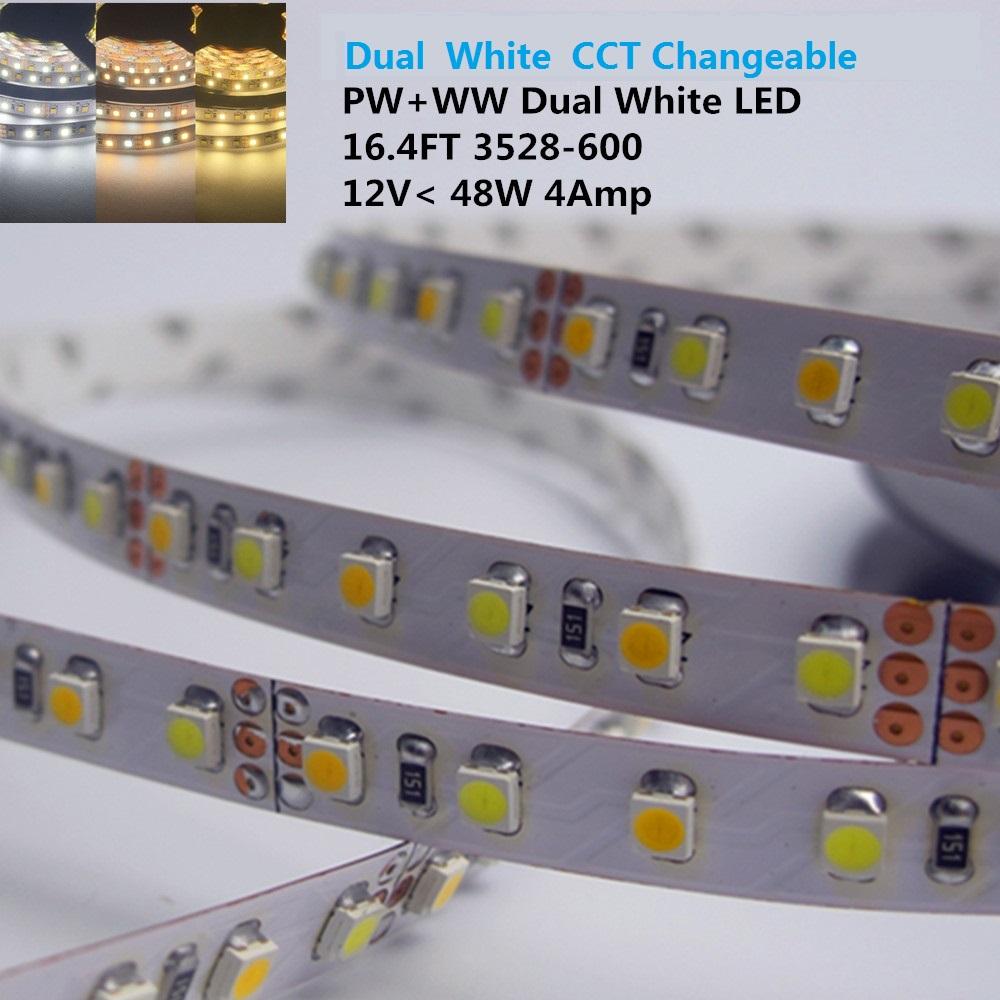

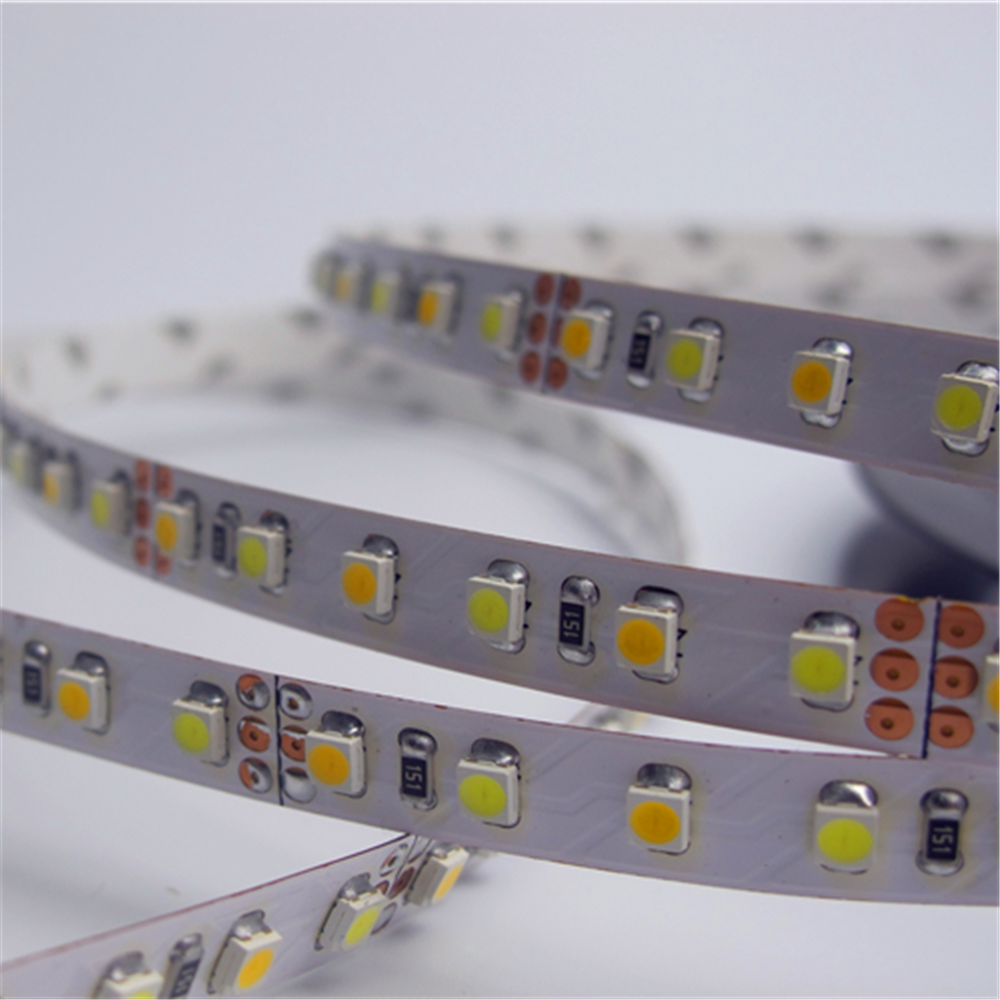

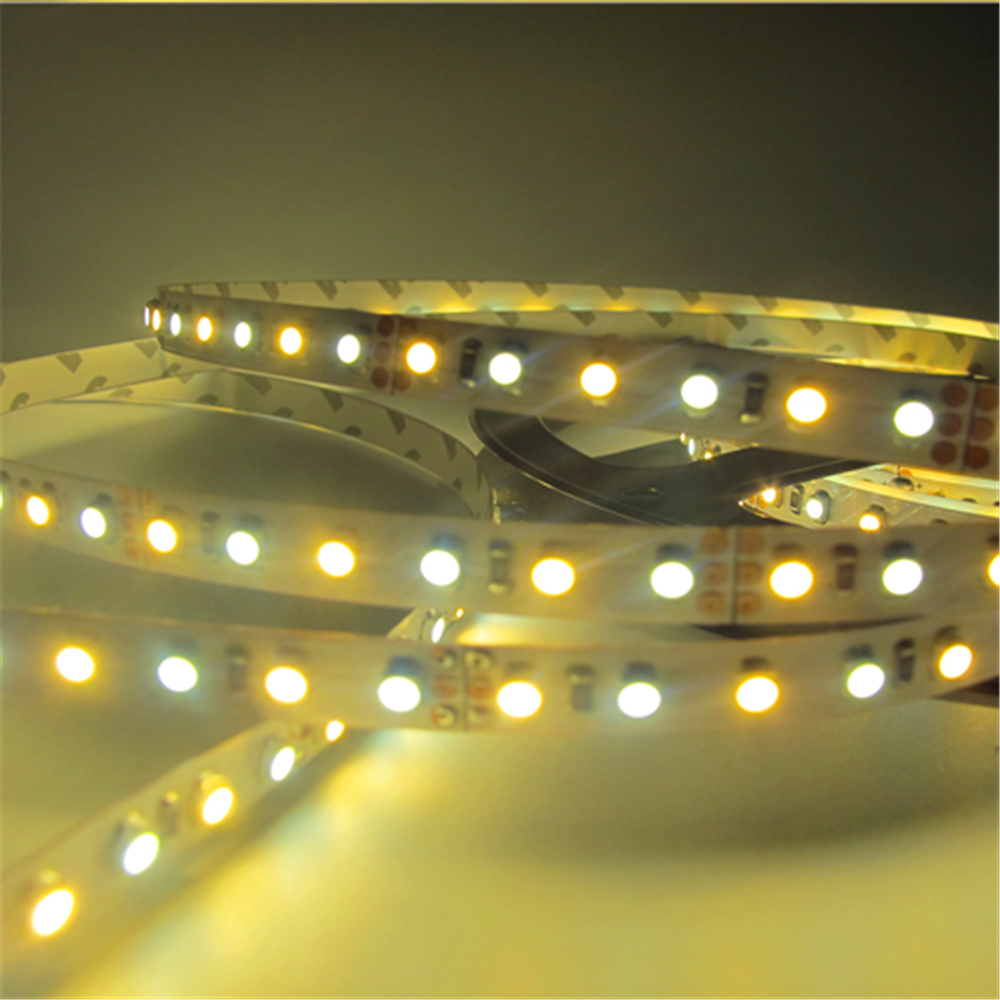

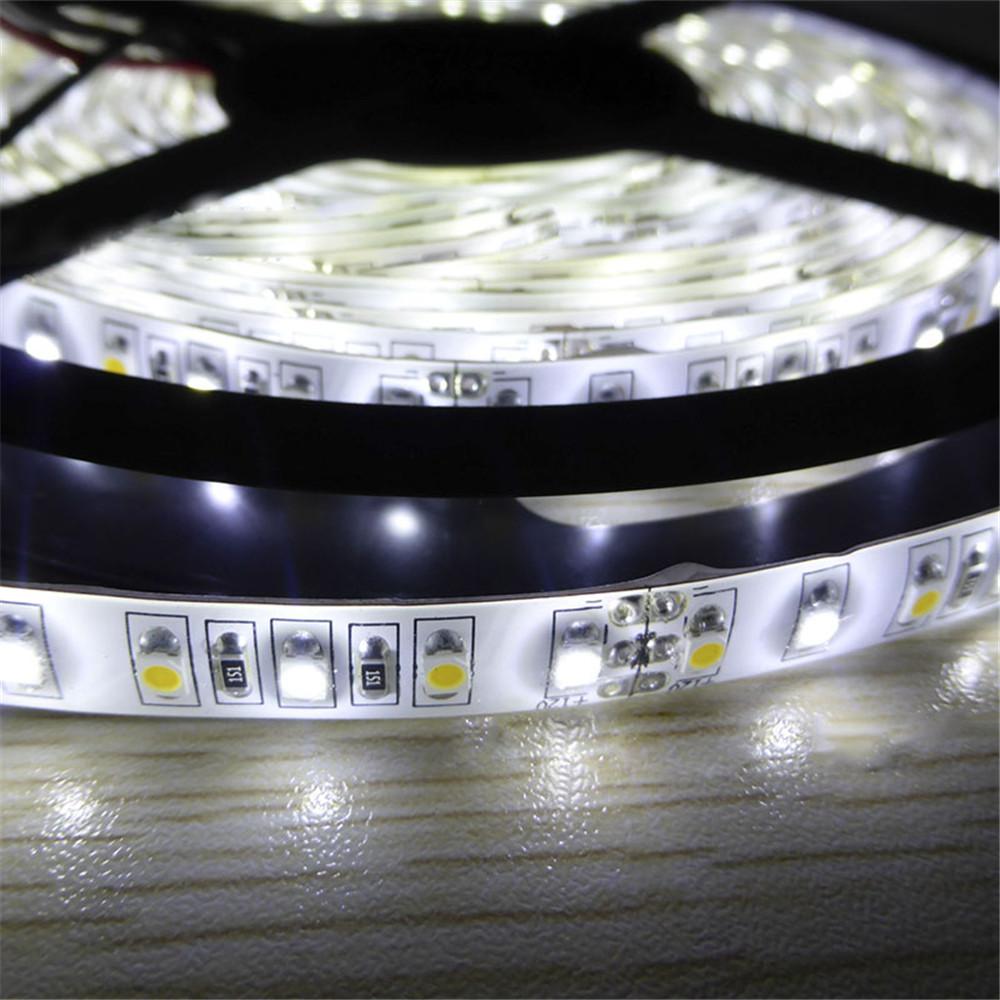

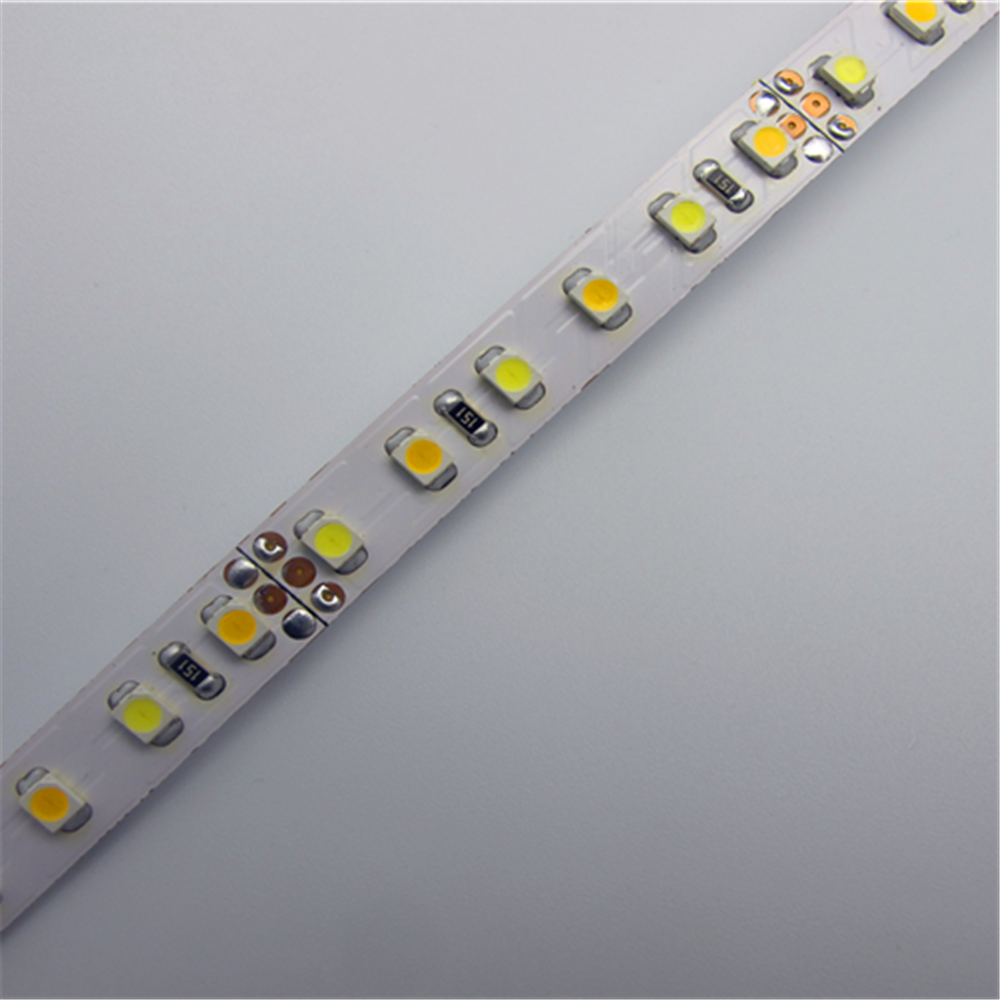

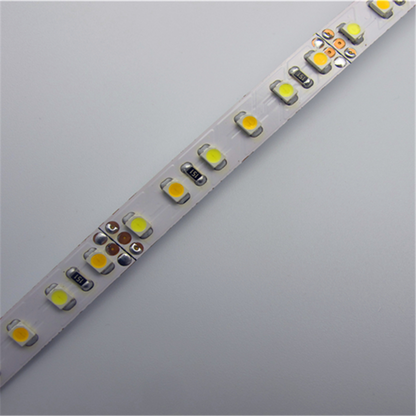

12VDC SMD3528-600-PWW Dual White Color Temp-Adjustable Flexible LED Strip Light 120 LEDs Per Meter
|Item||12VDC SMD3528 Dual White Color Temperature Adjustable LED flexible strip, 600LED per 5meter per roll|
|LED Type||Pure White SMD3528 and Warm White SMD3528|
|Cuttable||Every 3LED per 1'' can be cut|
|Weight||0.15kgs per 5meter per roll|
|Input Voltage||12V DC|
|Light Color||White color temperature adjustable|
|PCB color option||White|
|PCB Backing||Adhesive backing for Non-waterproof and waterproof IP65,IP67 and IP68|
|Dimming||PWM dimmable (more information please refer to different Dimmer applications)|
|CCT adjustable||Color Temperature adjustable with relative controller (more information please refer to different PWW controller applications)|
|Waterproof Type||Non-waterproof(indoor use), Waterproof IP65, IP67, IP68|
|Pre-wiring||20cm 3colors Lead wire at one end of the strip|
|Packing||5meter per roll packed in a static bag|
SMD3528, 600Leds/reel, Flexible LED Strip, Can be cutted 3 LEDs section under DC12V version, 6 LEDs section under DC24V version.
48W/reel, 120°, 5m/reel, width: 10mm, On PCB with self-adhesive back .

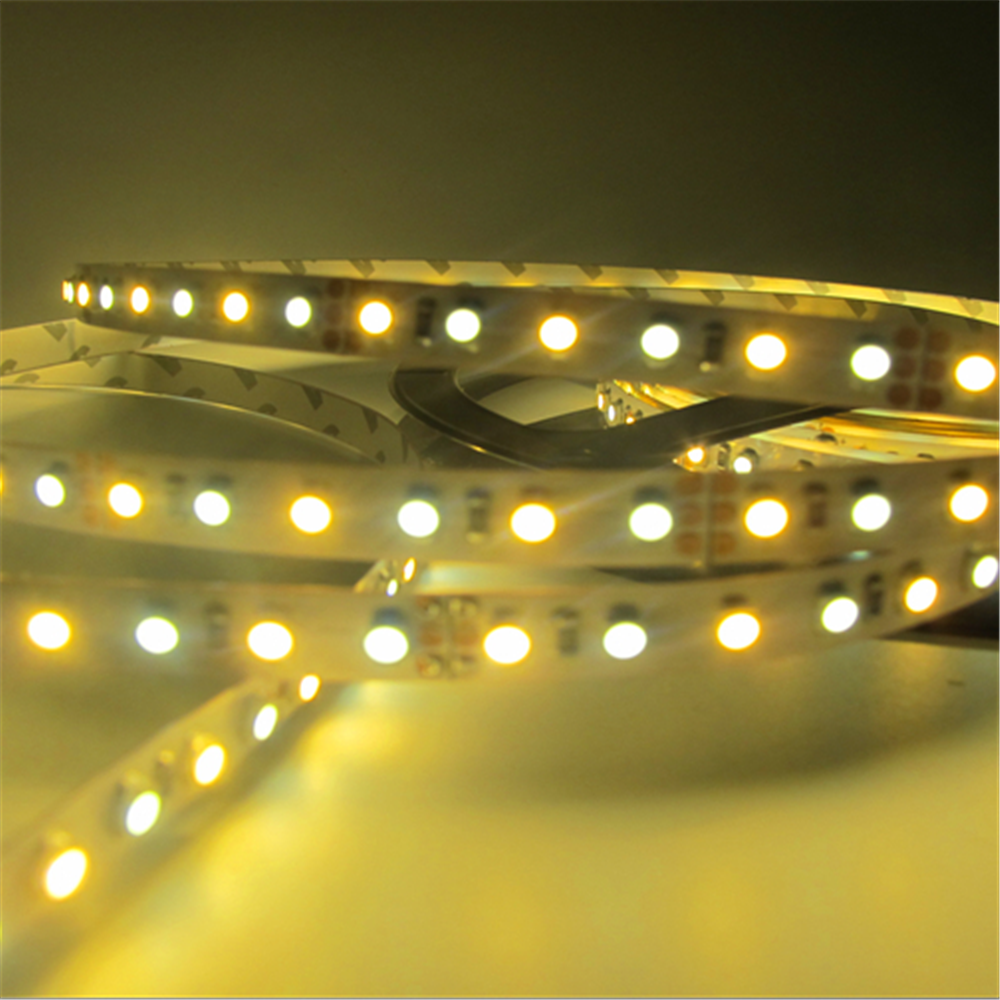

This particular LED strip light can present two colors:pure white and warm white . Color temperature in between 3000-7000k,so you can control the color you want.And it can use together with Multi-Finger Color-temperature Controller or Color Ring Remote Color Temperature Adjustable LED Controller. These 12 volt Flexible LED Strips are sold in one reel (16.4 feet or 5 meters) increments. If you enter a quantity of "1", you will get 16.4 feet.if you enter "3",you will get 3 pcs of 16.4 feet.
Material and technology:SMD3528 and flexible FPC
Lighting character:view angle,color uniform
Lumen depreciation:good dissipation,no more than 3% after 30000h
Electrical safety:use 12v power supply, safety and reliable
Installation:3M tape back of strip,ultrathin design
COLORS AVAILABLE with DUAL WHITE CONTROLLER
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.

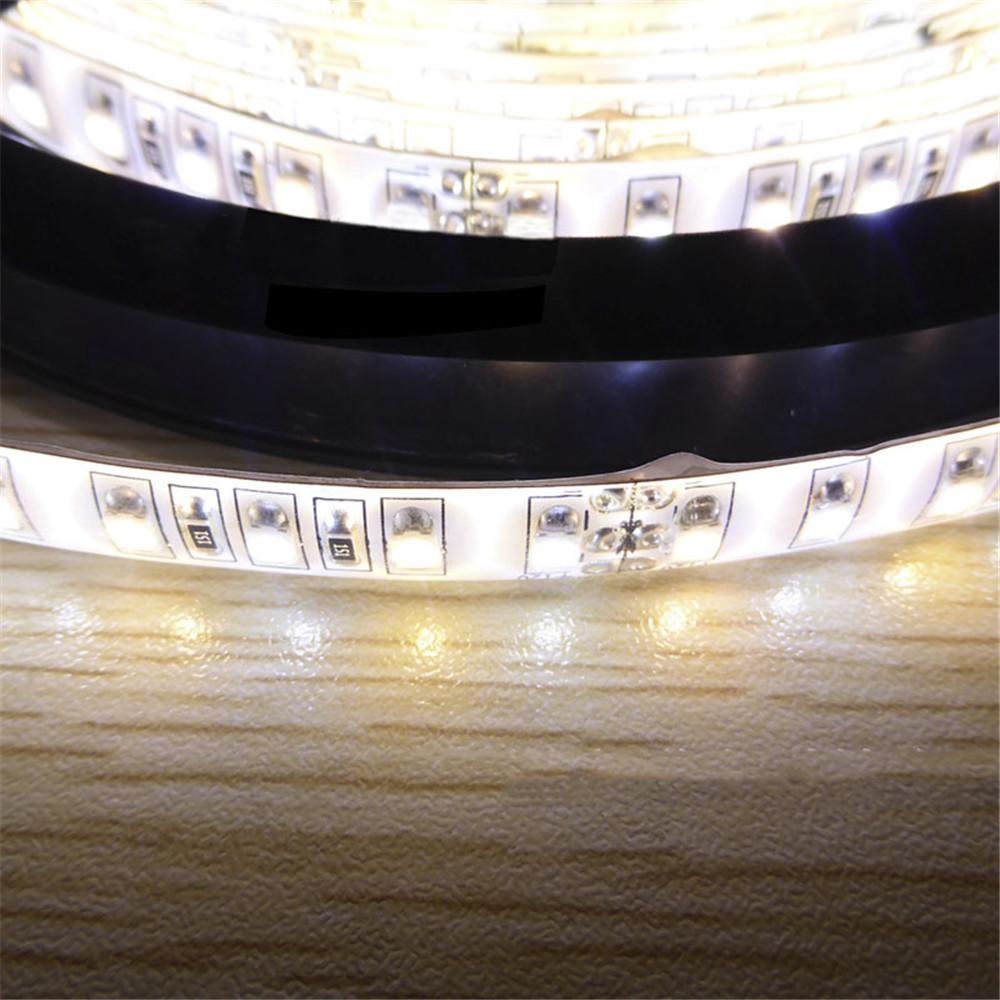

*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
How to cut and mount the strip
Solderless Quick Connector to use after cut (Note:the 3528 dual white strip need 8mm wide 3contacts models)
Snap down connectors with contact tongue for bared PCB, non-waterproof strips
How to control and power the strip
The Dual White Color Temperature Adjustable strip need to work with the Controller to make it work. You can use one controller to control endless of strips by adding Amplifiers.
The rule to choose transformer for strips is to give enough power. We can power several rolls of strip by one big enough transformer or by several pieces of transformer that can supply enough power.
Less power will do no harm to the strip, but just without enough power, the strip cannot give out 100% of its brightness.
And when choosing the transformer, we should have in mind that Transformer must be de-rated 20% to prevent overheating. And a big power transformer do no harm to the strip but good for safty.
#1 Typical connection for one controller to control one roll of the strip
#2 One controller to control several rolls of strips by adding amplifier, and powered by several transformers.
Connection Example #1
Connection Example #2
