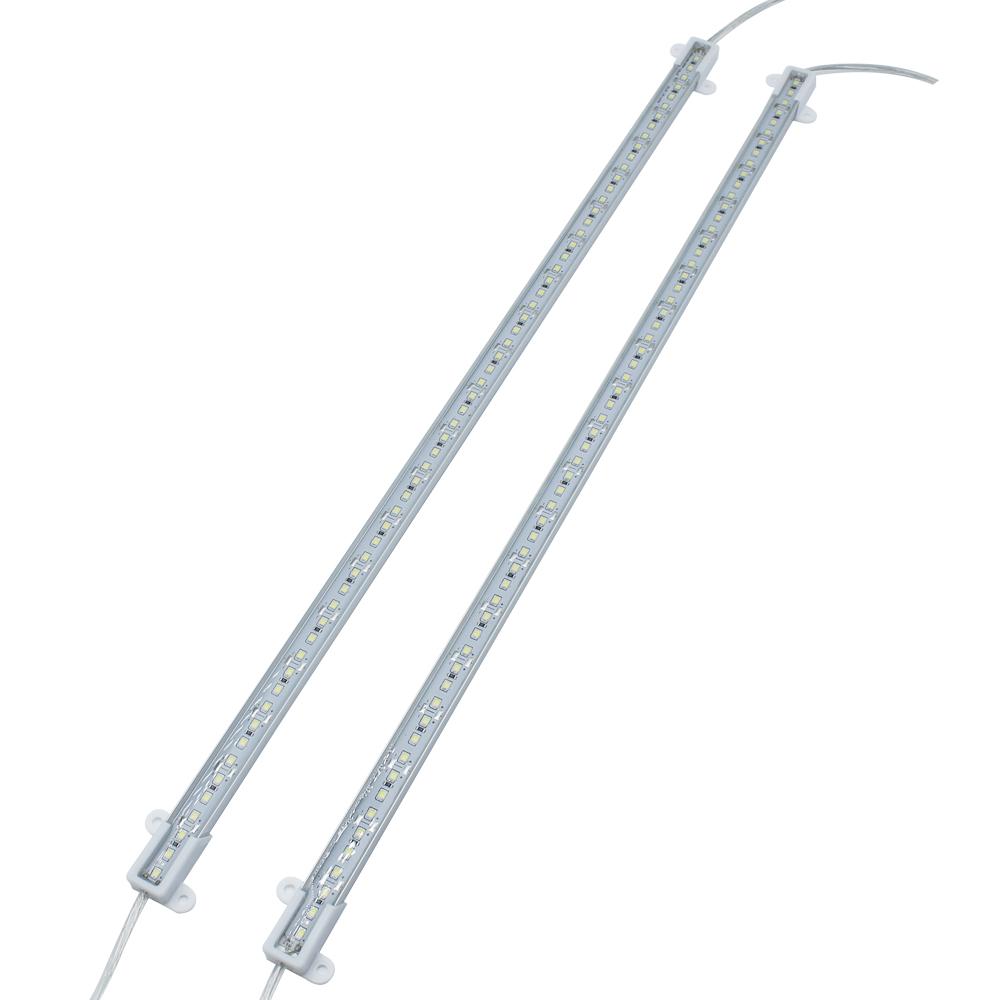

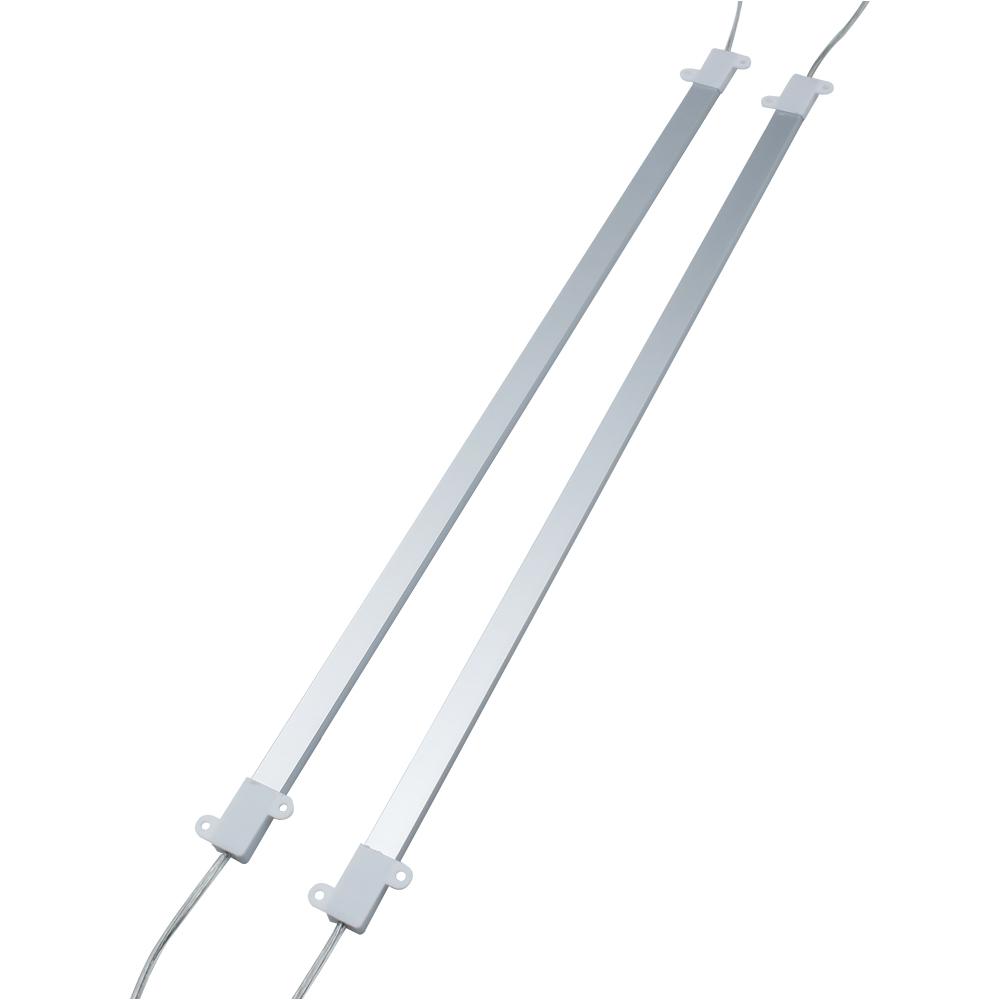

12VDC Waterproof IP65 SMD3528-36-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 36LEDs 3.6W per piece

SKU HK-AR3528IR36W-850NM-12

LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip.This Waterpoof IP65 LED Aluminum Shell Rigid Light Strip is sold by 50cm long per piece. It's 12VDC operation. Dimmable with compatible LED dimmers. Customized lengths accept.

Technical Specification
Wattage 7.2W/pc Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD5050 Strip Section 3LED per 1.93inch
WxH 12x7(mm) (not include end cap size) LED QTY.: 30LED/pc
Length Available 500mm (customized length available) Available Color 850nm and 940nm
Protection Grade Waterproof IP65 Finish Color Silver


Other Features
Item 12VDC Waterproof IP65 SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece
Weight 150g/pc

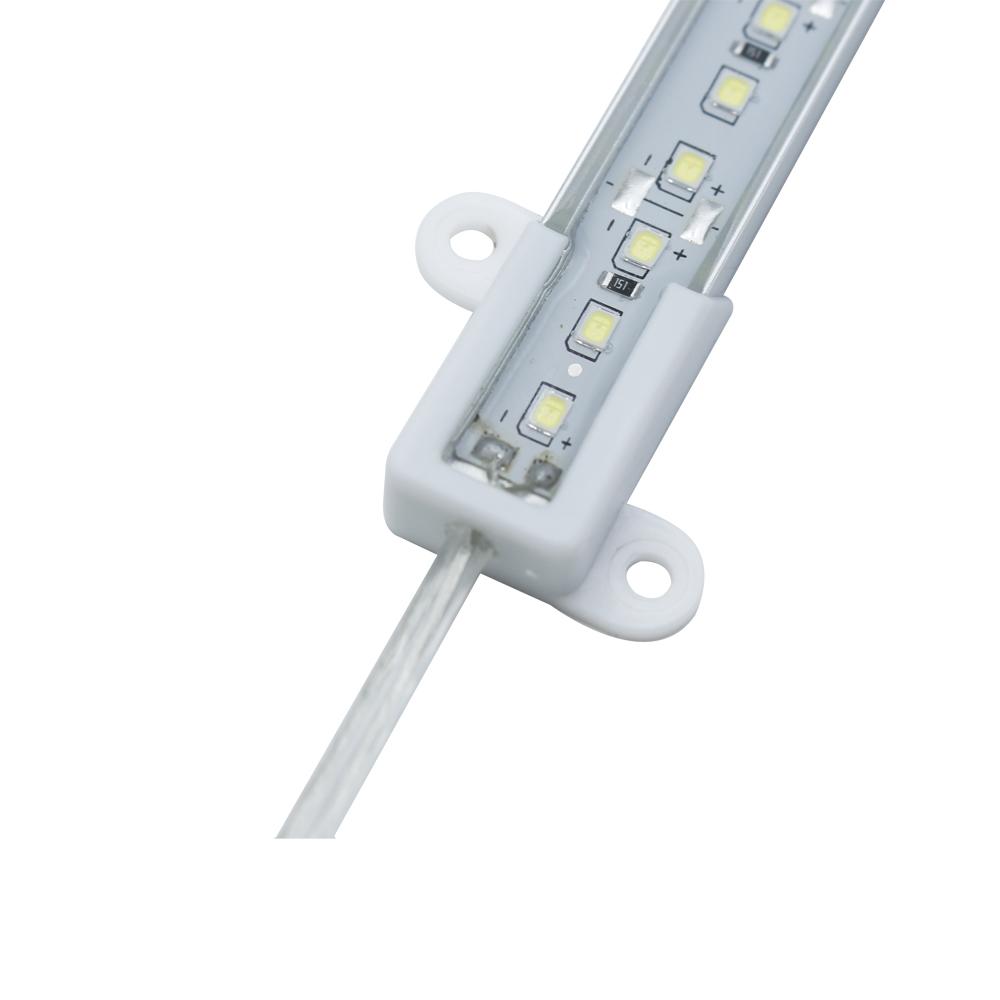

Mounting       The light bar end cap with hole on it, can use screw that provided to fix on to object surface.

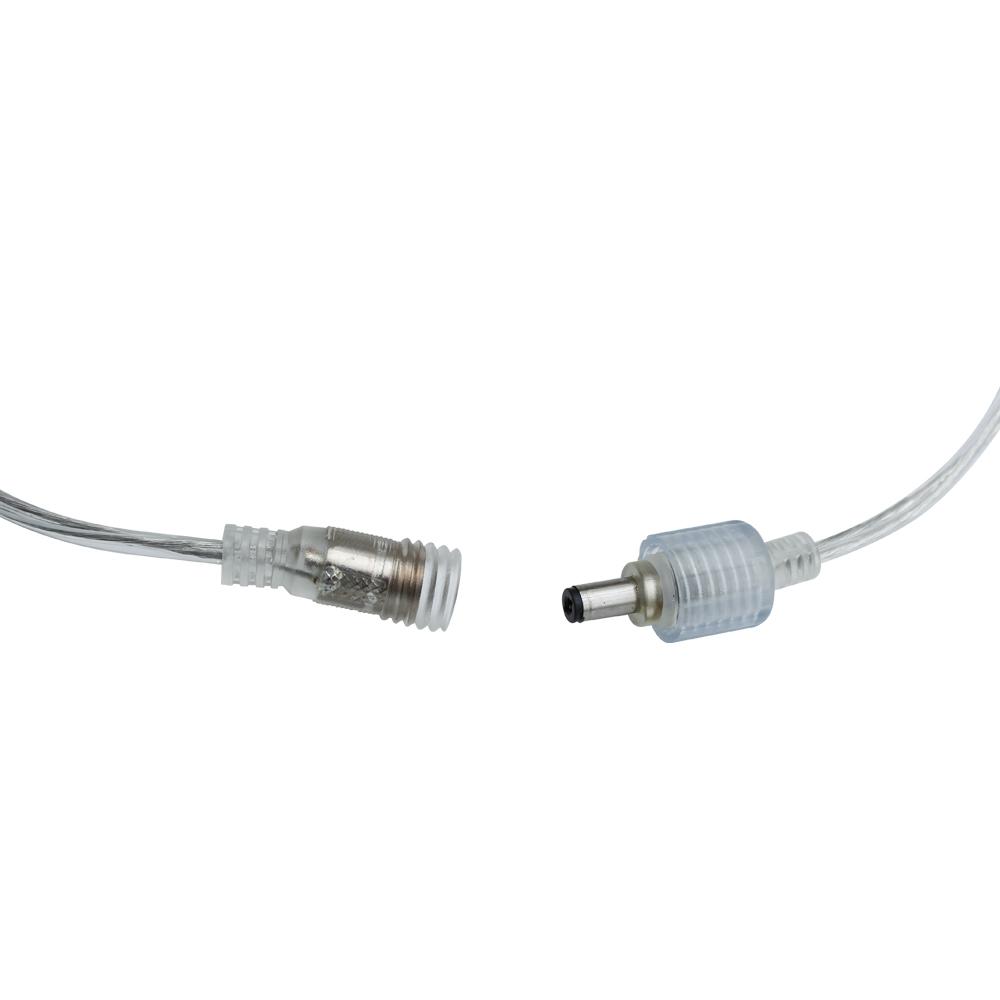

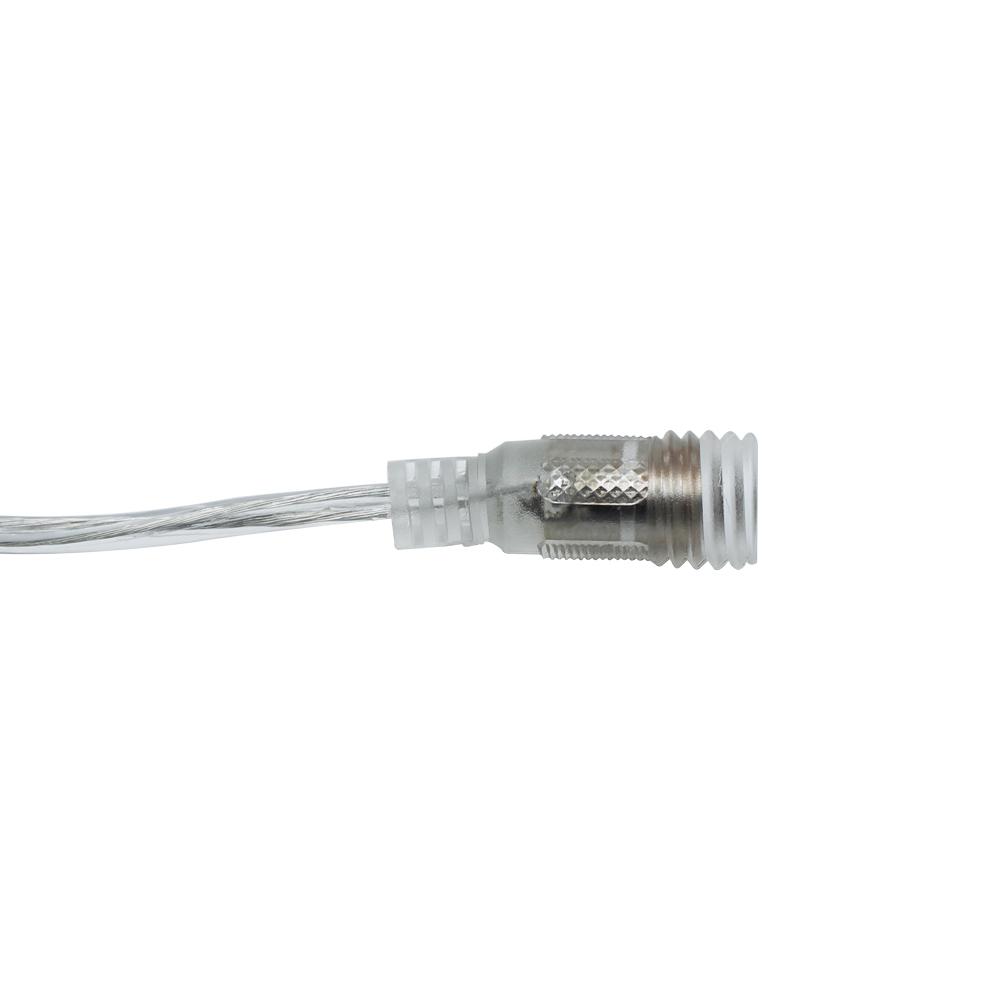

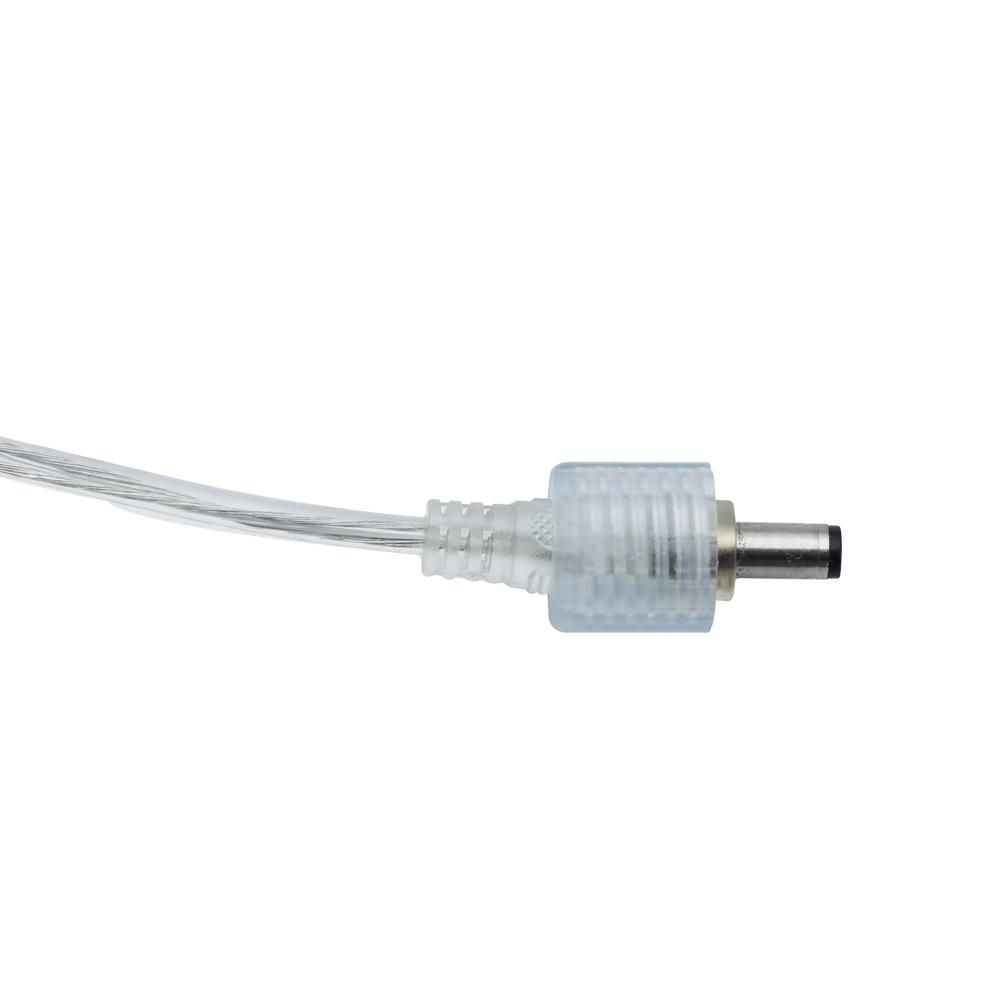

Accesssories Solder with DC5.5x2.1*(mm) plug connector at both ends, one end with female, the other end with male.
Lead V+ and V-, polarities sensetive


Dimensional Drawing


*For surveillance or security

*For the multitouch display

*For Night Version Light



*Can be cut into 3-LED segments

*Adhesive backing

*12VDC Operation

*Dimmable - See our Dimmer Selection


Safty Tips

*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.

*Do not crimp or bend the Rigid Strips.

*Do not connect LED Rigid Strips. directly to 120V AC power.

*Apply power to test LED Rigid Strips before mounting.

Installation Planning

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
