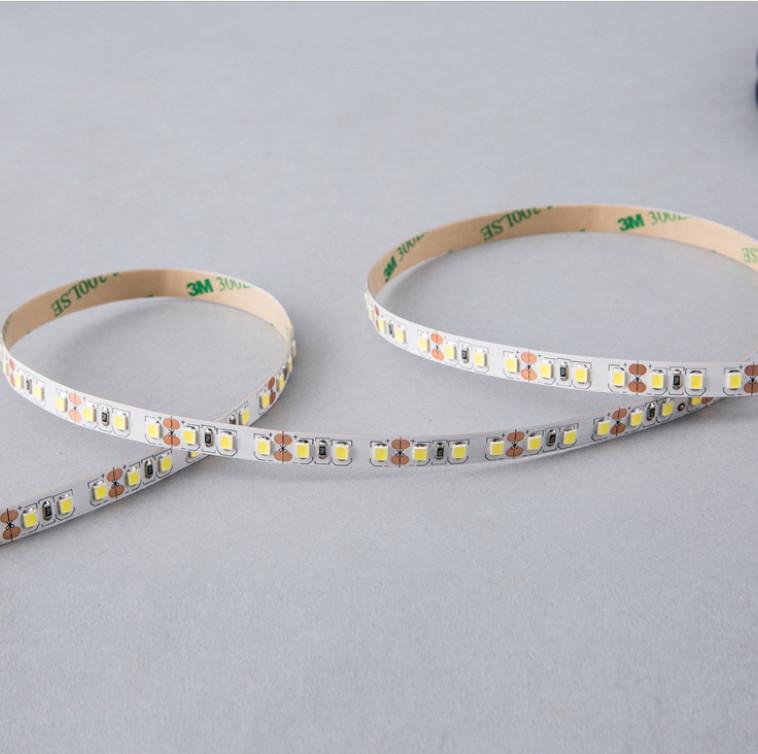

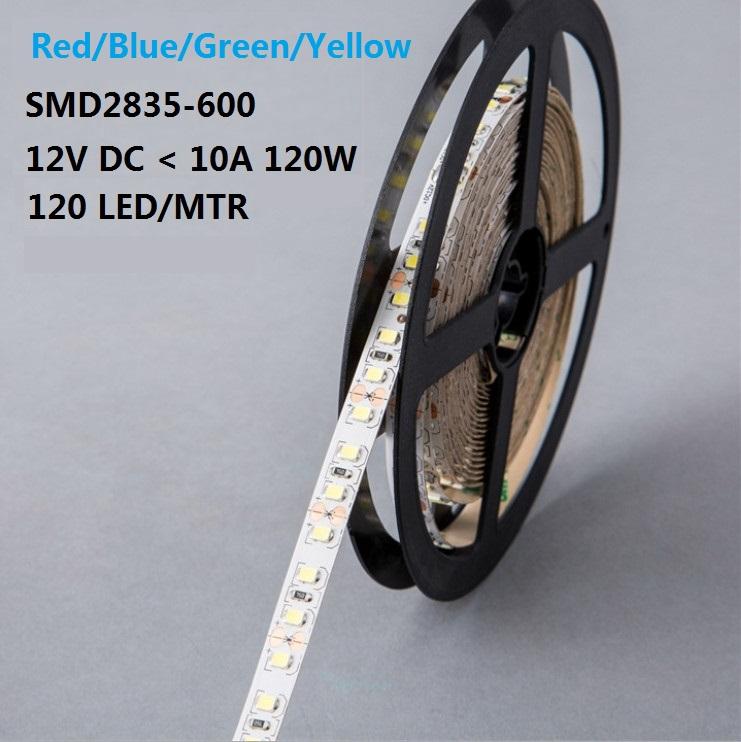

DC12V Red/Blue/Yellow/Green 84W 7A 5Meter (16.4Ft) SMD2835 600LEDs/Roll Color Rendering Index CRI80 Flexible LED Strips 1900LM/M 8mm Wide White PCB

$4.99
SKU 0.5M-HK-8MM-F2835Red120-NW-12
Length
Color
Waterproof

DC12V 84W 7Amp 5Meter (16.4Ft) SMD2835 600LEDs/Roll Color Rendering Index CRI80 Flexible LED Strips 1900LM/M 120LEDs/M 16.8W Per Meter Ribbon Lamp 8mm Wide White PCB



SPECIFICATION

Item:   12VDC SMD2835 LED flexible strip, 600LED per 5meter per roll
LED Type: single color SMD2835
LED QTY.: 120LED/Meter
Input Voltage: 12V DC
Wattage (max): 16.8Watt/Meter
Cuttable: Every 3LED per 1'' can be cut
Size(W*H/mm): 8*2
Weight: 0.15kgs per 5meter per roll
Lumen Output: 1900LM/Meter
Light Color: Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm)
PCB color option: White
PCB Backing: Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
Packing: 5meter per roll packed in a static bag

 Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)



  Waterproof Strip Dimension



*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
