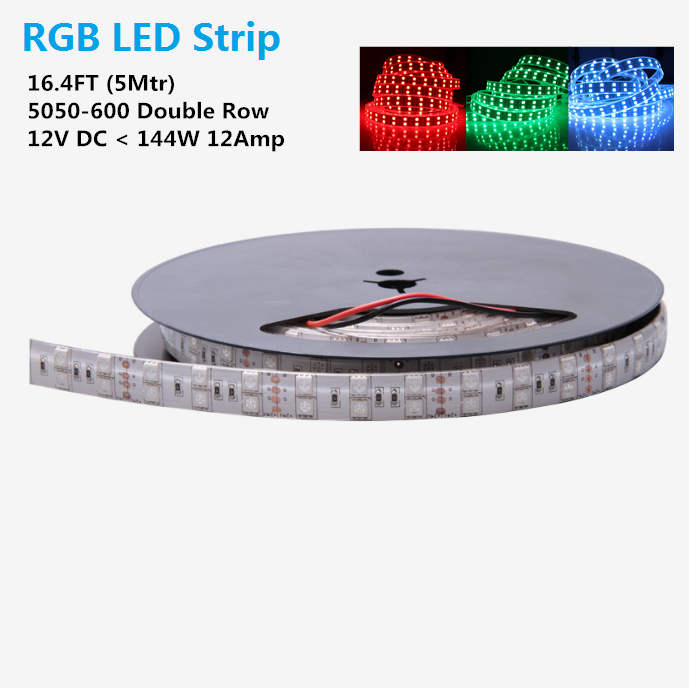

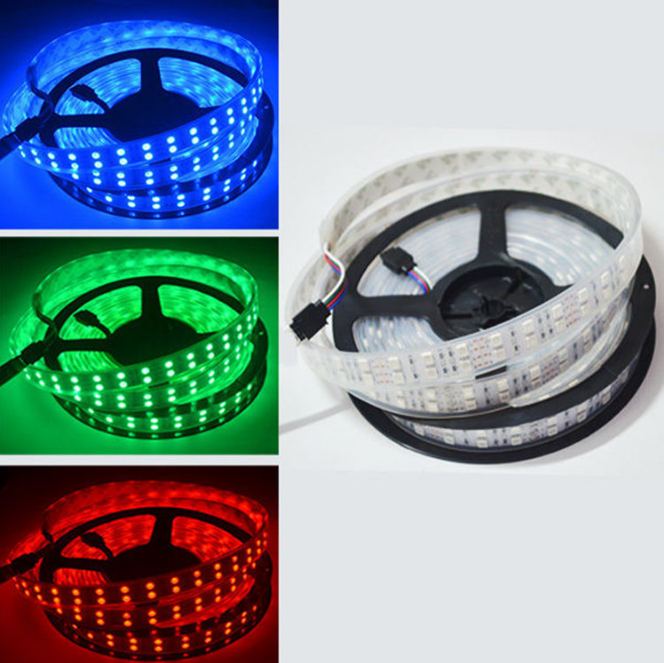

DC 12V RGB Color Changing SMD5050-600 Double Row Flexible LED Strips 120 LEDs Per Meter 15mm Width

SKU 5M-HK-15MM-F5050RGB60-NW-12
* RGB Color Changing LED Strip
* 5050-600LED per 5 meter/roll High Density Double Row Strip, 12V DC < 144W 12Amp

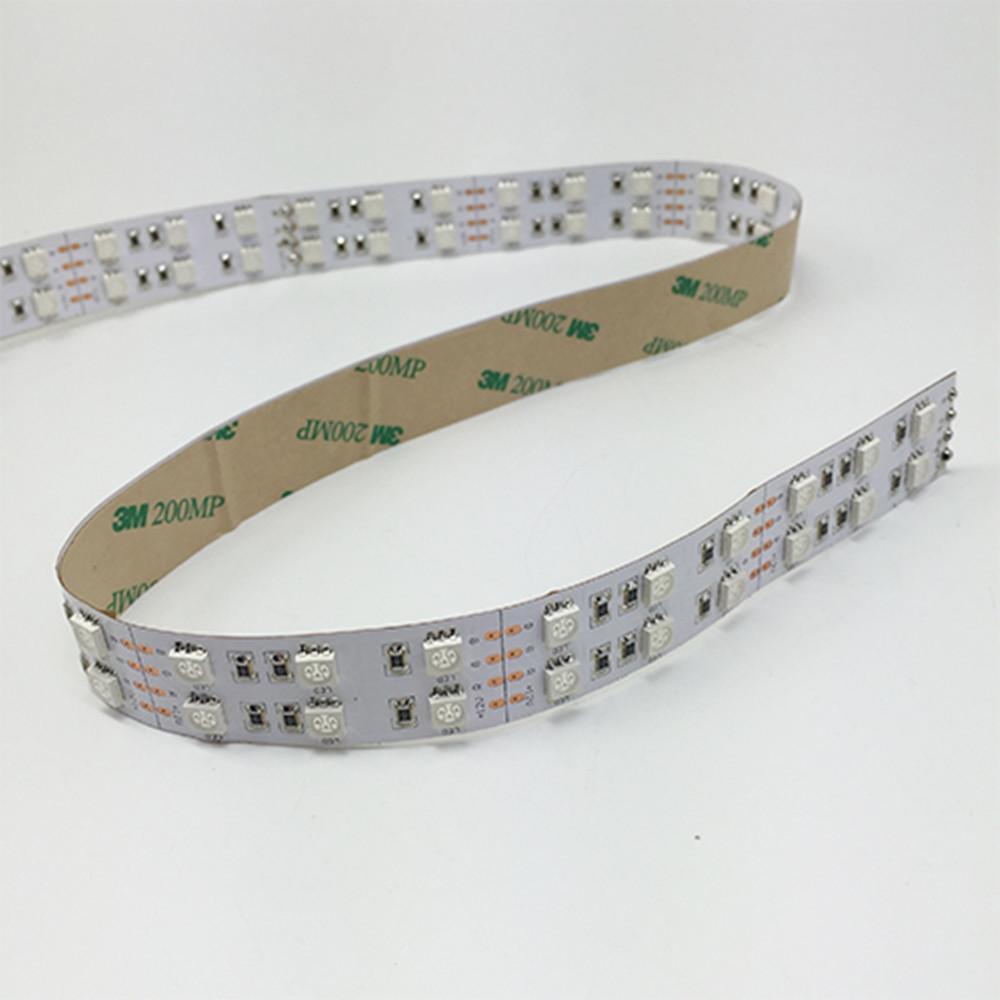

* White PCB with adhesive backing
* IP grade: Non-waterproof IP33, Waterproof IP65, IP67 and IP68
* Need to work with RGB color changing LED Controlled (not included)
* The strip is 12V DC operating, be rated in 144W, we suggest to use a bigger transformer say 180Watt 15Amp to power it (not included)



Technical Specification
Wattage 28.8W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD5050 Strip Section 6LED per 2inch
WxH 15x2(mm) LED QTY.: 120LED/Meter
Length Available 0.5 to 5 Meter Available Color RGB color
Protection Grade Non-waterproof, IP65, IP67 PCB Background White


Other Features
Item DC12V SMD5050-600 Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter
Weight 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67
PCB Backing      Adhesive backing for Non-waterproof and waterproof IP65/IP67
Lead Wire RGB color strip has 4 contacts(V+,R-, G-, B-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') RGBBlack lead wire is pre-soldered at one end of the strip

Package included:
• 1x 5meter per roll LED Flexible Strip

• Widely used for home, hotels, clubs, shopping malls
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration
• Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
• Amusement park, theater and aircraft cabin mood lighting
• Applicable for automobile, boat and bicycle decoration

Waterproof Strip Dimension


*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
