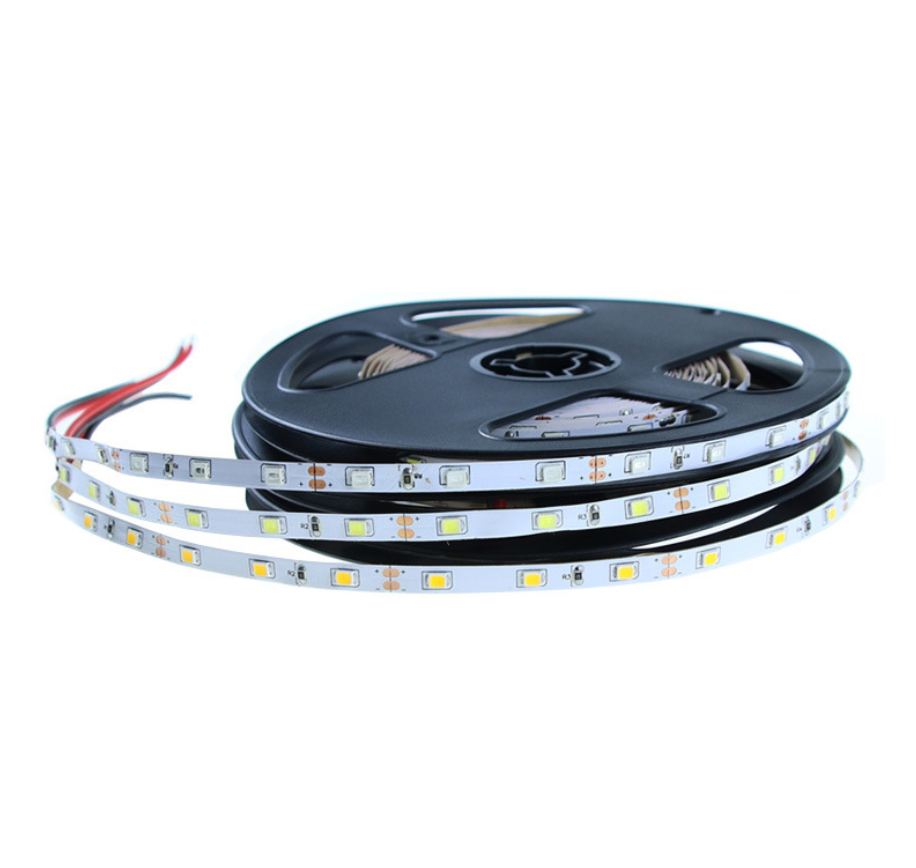

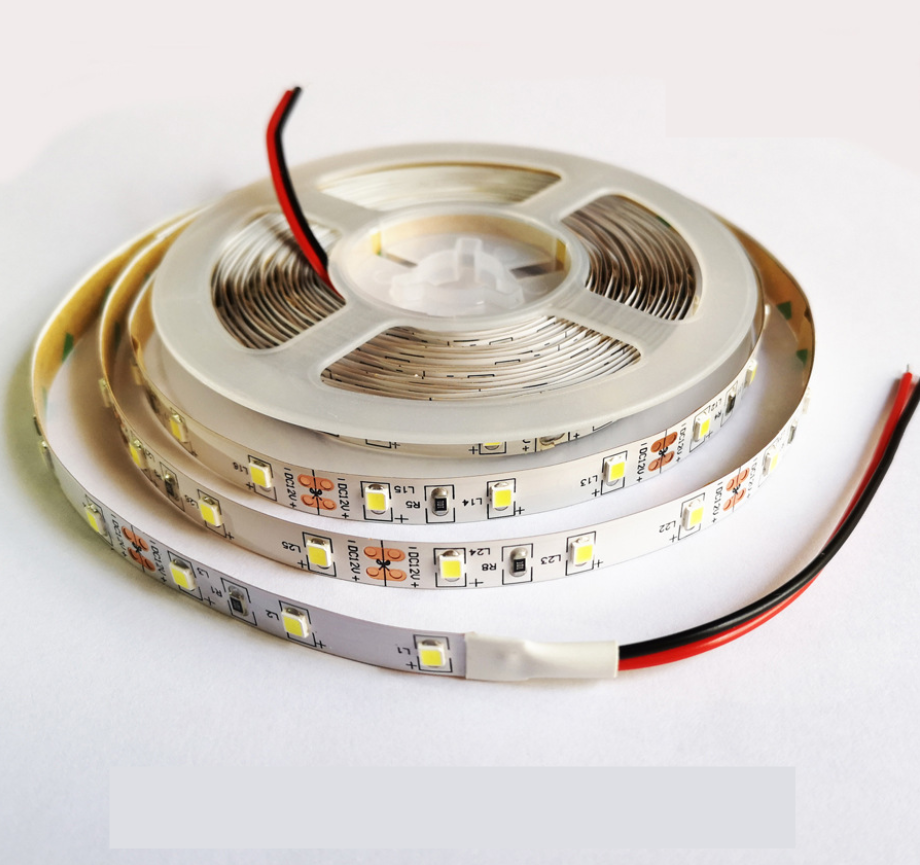

High CRI > 90 Super Slim DC 12V SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 5mm Width 300lm Per Meter
CRI>90 Super Slim 5mm Wide White FPCB Background DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 300lm Per Meter
High-End Product CRI90 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product CRI80 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product CRI60 Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.

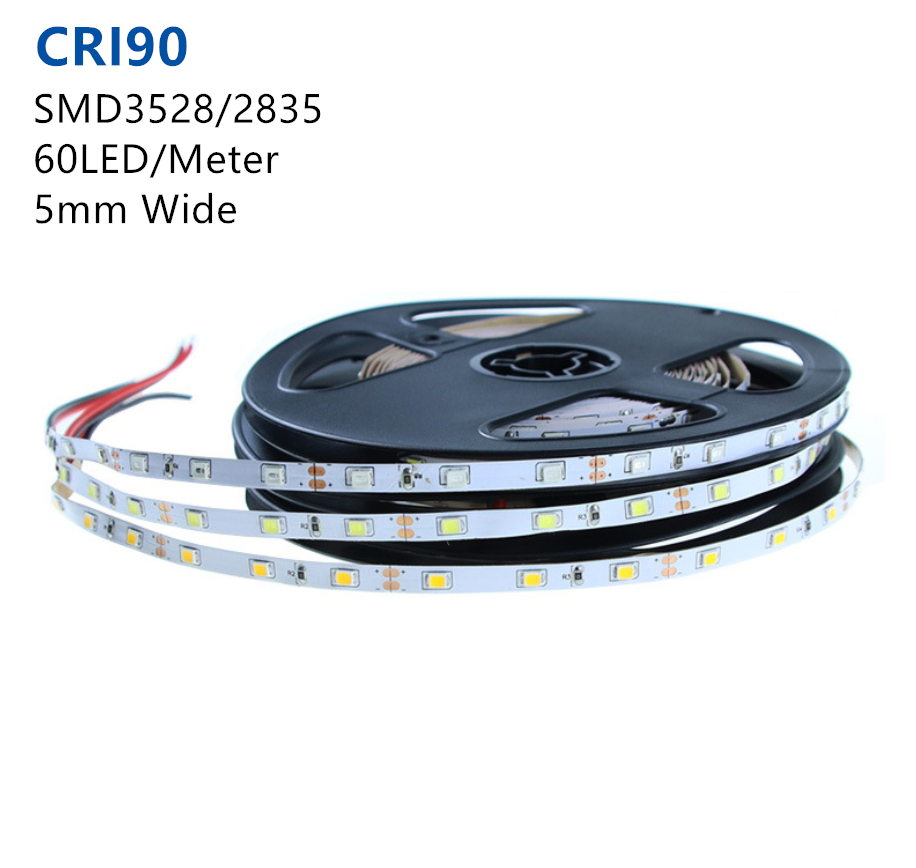

Item: CRI90 5mm wide 12VDC SMD3528 LED flexible strip, 300LED per 5meter per roll
LED Type: single color SMD3528
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 4.8Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 5mm wide for White PCB
Weight: 0.15kgs per 5meter per roll
Light Color: Pure White(5500-6500K), Warm White(3000-3500K), Ultra Warm White(2700K), Natural White(4000-4500K)
CCT: 2700K-6500K; CRI>90
PCB color option: White
PCB Backing: Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use), Waterproof IP67
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
Packing: 5meter per roll packed in a static bag
1) The delivery date of Warm White(2700-3000K) and Nature White(4000-4500K) would be longer. We would deliver the goods within 3-4 working days.
2) This 5mm wide LED strip has no compatible solderless connector to use.
3) This 5mm wide strip can make into IP67 waterproof, by encase the strip in shrink tube, with mounting clips provided.
4) These 12 volt Flexible LED Strips are sold in 0.5, 1, 2, 3, 4 and 5 meters, if you need custom length, please contact us.
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
