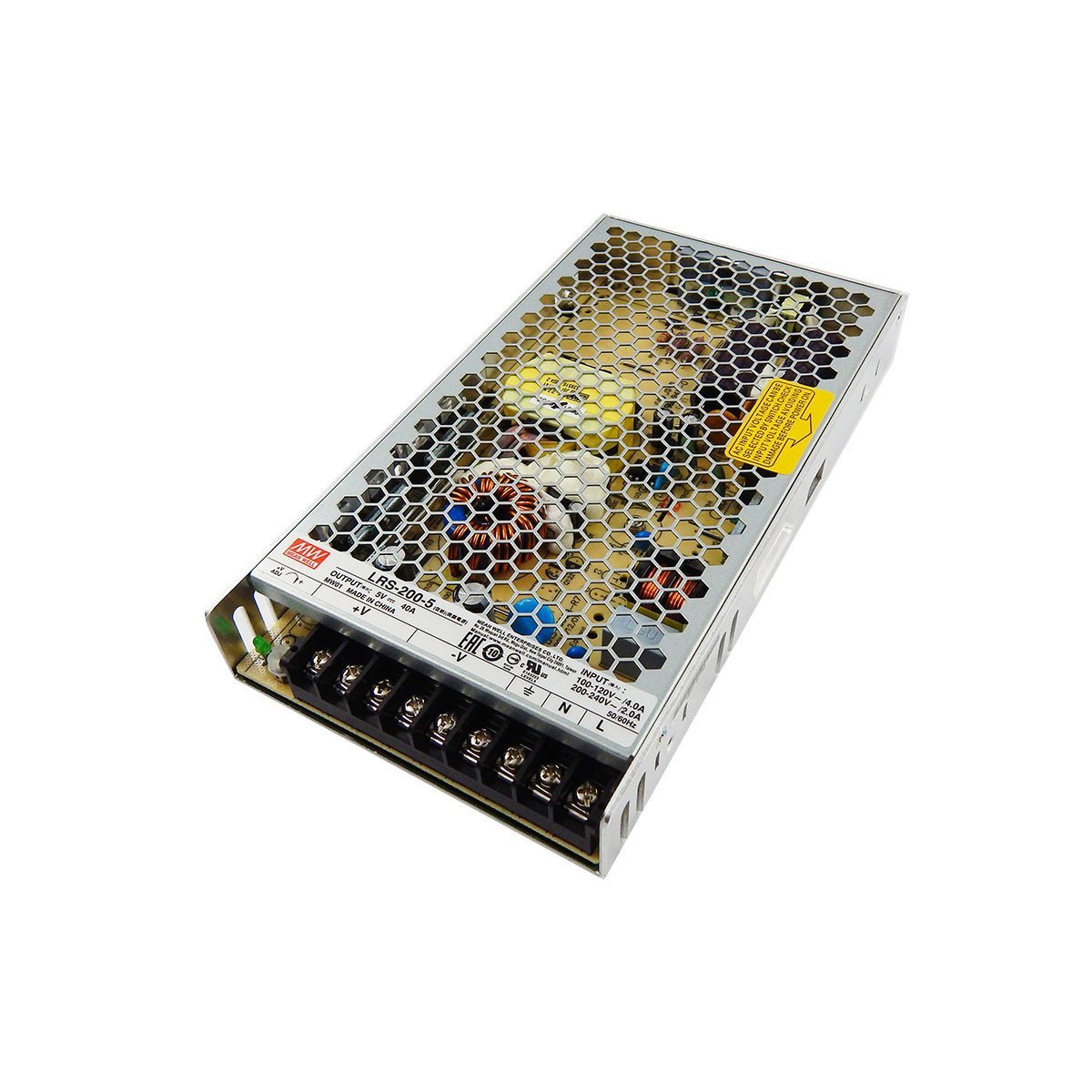

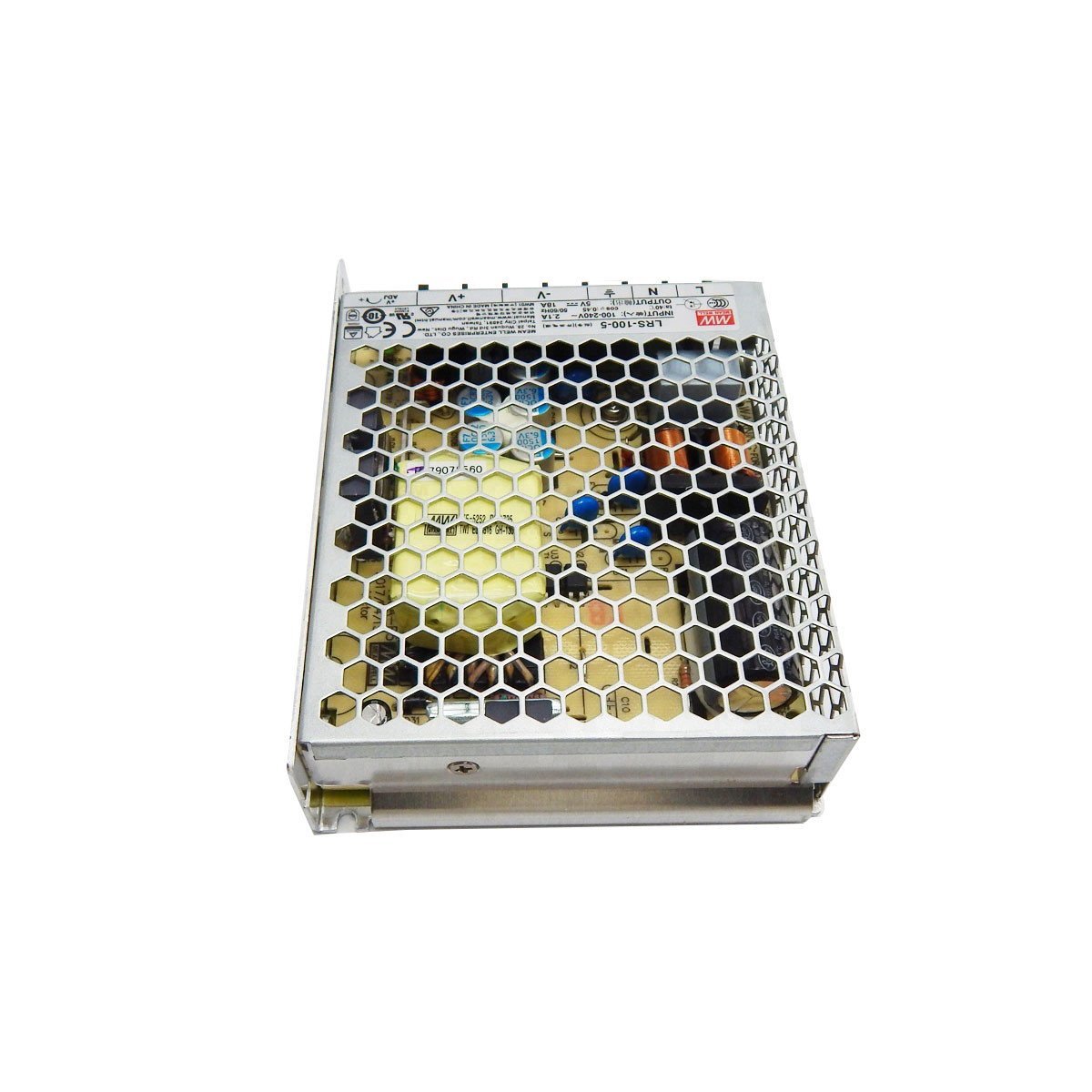

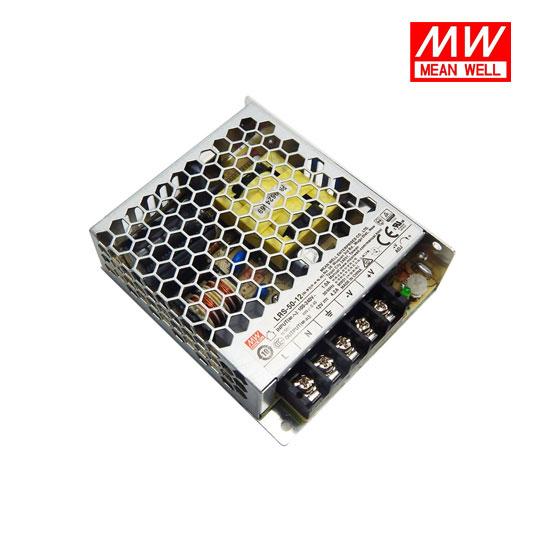

MeanWell UL Listed AC/DC (5V/12V/24V) Enclosed Single Output Switching Power Supply

Output Voltage

Product Notice

* 35W - 350W
* Non-PFC, most economical models
* Ultra compact and 1U low profile
* 300VAC input surge
* No load power consumption: 0.2W~0.75W
* 5G vibration, 70℃ operation
* Operating altitude up to 5000 meters
* Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL60950-1 and GB4943

Application* Industrial automation machinery
* Industrial control system
* Mechanical and electrical equipment
* Electronic instruments, equipment or apparatus
* Household appliances


The cooling style is different between  the 300W powersupply and others

The 300W poewer supply is cooling by the fan inside

The other powersupply is cooling by the free air convection



* Universal AC input / Full range
* Withstand 300VAC surge input for 5 second
* No load power consumption<0.2W
* Miniature size and 1U low profile
* High operating temperature up to 70°C
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* Compliance to IEC/EN 60335-1(PD3) and
* IEC/EN61558-1, -2-16 for household appliances
* Operating altitude up to 5000 meters (Note.8)
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* LED indicator for power on
* Over voltage category III
* 100% full load burn-in test
* 3 years warranty
