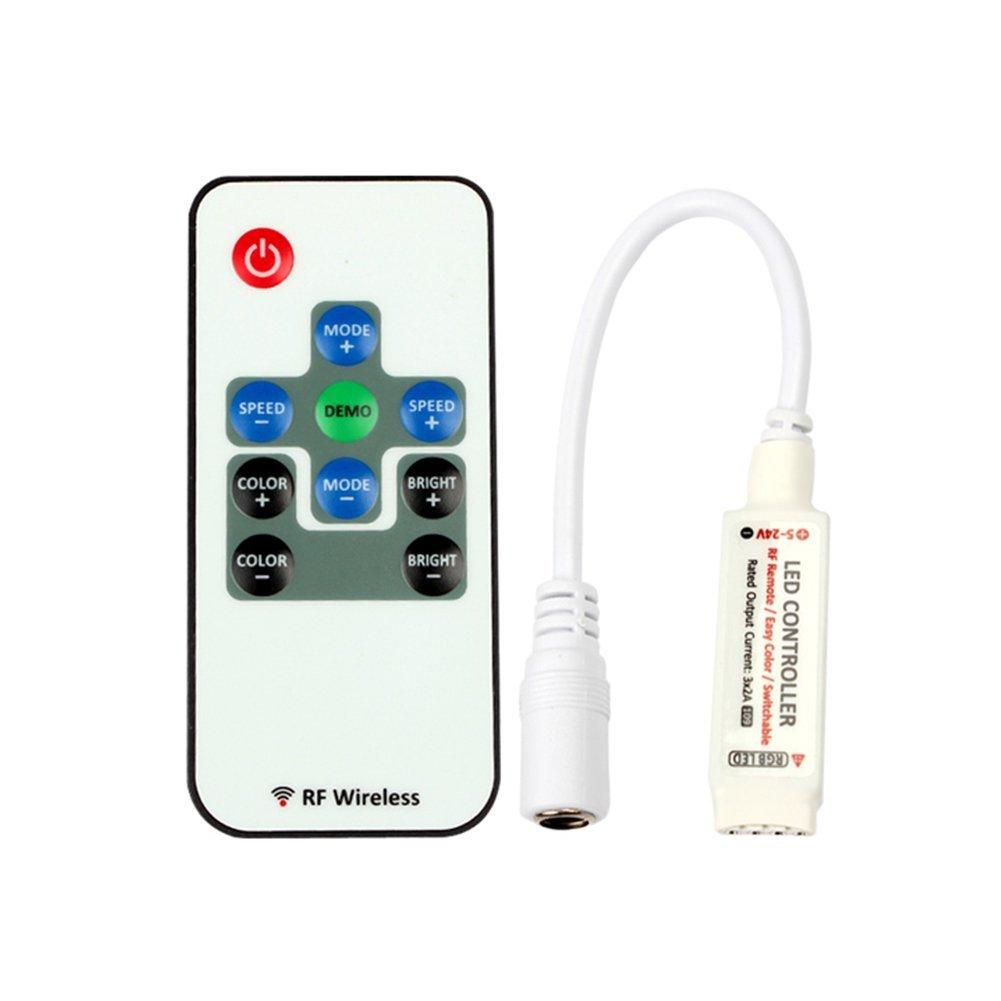

RF Wireless Mini LED Controller with 10-key Remote 5V-24V 12A / 3 Channels for RGB/GRB LED Strip SMD5050 SMD3528 Color Changing

$6.95
SKU HK-R108-D

RF Wireless Mini LED Controller with 10-key Remote 5V-24V 12A / 3 Channels for RGB/GRB LED Strip SMD5050 SMD3528 Color Changing

*Wireless RF RGB LED Controller
*Speed and brightness adjustable
*Output Current:5-24VDC, 4A/Channel, max 12Amp
*Remote Controller Frequency:433.92MHz
*Used for RGB LED strip such as 5050, 3528, etc.
*Remote Distance: <50Meters in open air

Description

This RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize gradual change, fadein dimming, jumping change, strobe, quick flash and other kinds of model. It is easy to take, simple to use, etc.

Specification

Working Voltage:5~24V
Peak Output Power:[email protected]; [email protected]
Peak Output Current:3x4A

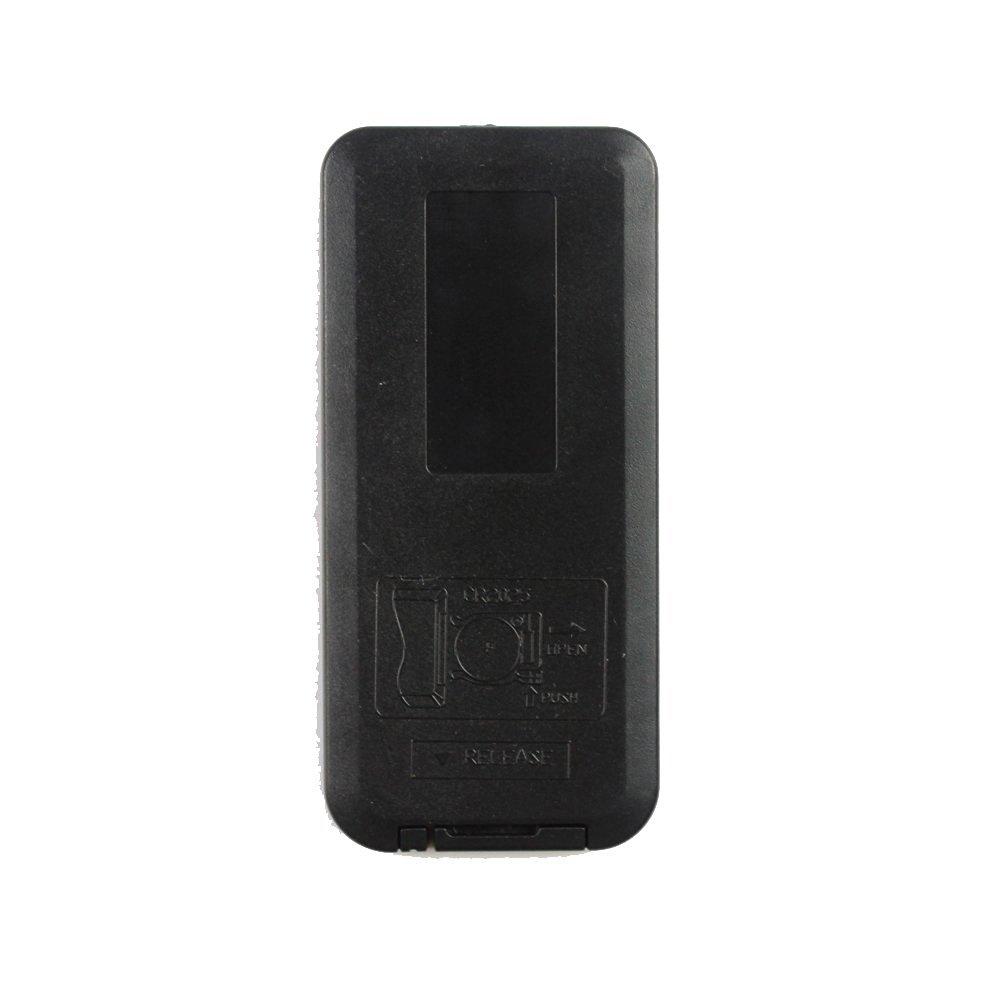

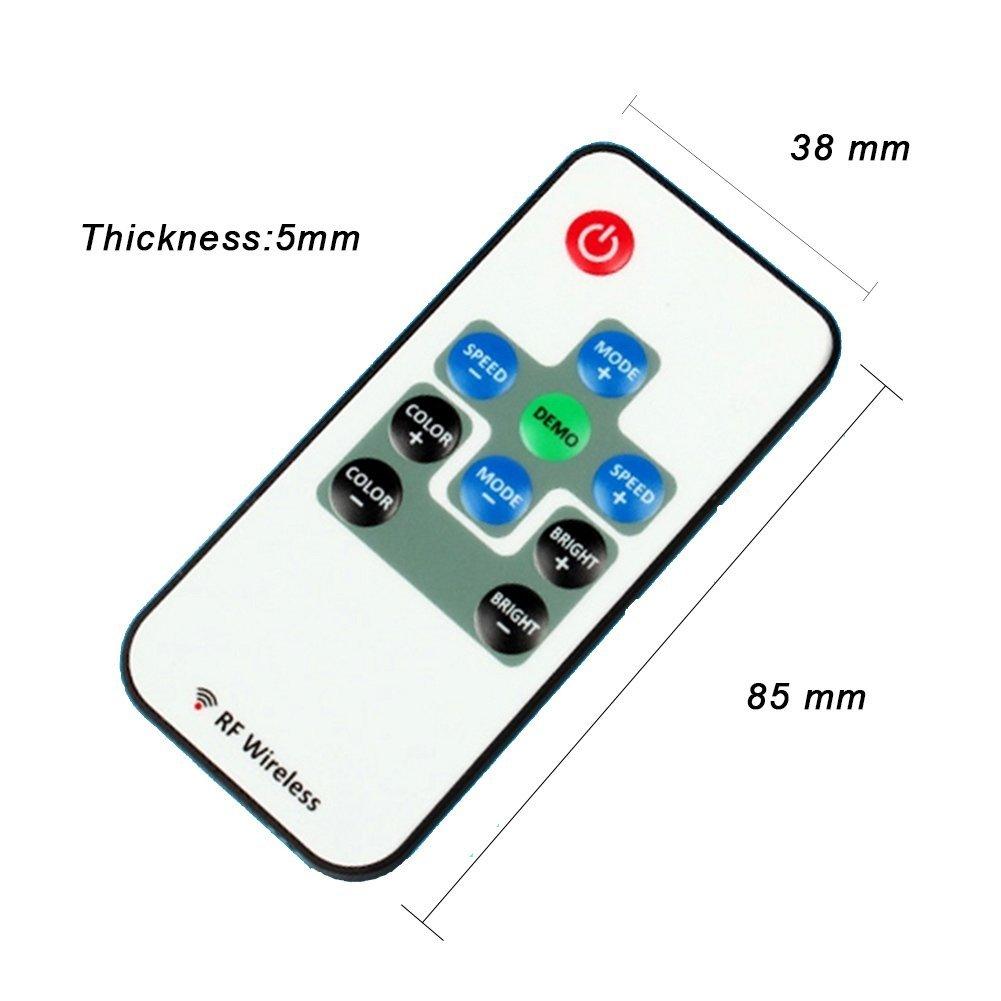

Remote controll:RF wireless card type remote controller
Remote Controll Frequency:433.92MHz
Remote controll Battery:CR2025 cell battery
Remote Distance:>15 meters in open area
Remote Controller matching mode:1 to 1 match for remote controller & main unit.
PWM control level:256-level
Wrong Polarity Protection:Yes
Working Temprature: -30~70℃
Components & PCB:SMD parts / Double side FR-4 pcb


Dynamic Mode:19 modes
Dynamic Speed Level:10 levels
Static Color:20 colors
Color Brightness level:10 levels
Demo mode:Yes
On/Off Operation:Yes
Auto Recall Function:Yes
Power Connector:5.5mm DC Female Jack
LED Connector:4-Pin Flat Female Jack

Package Include:

1x 10Key RF Remote
1x Mini Controller
1x User Manual



Application:
