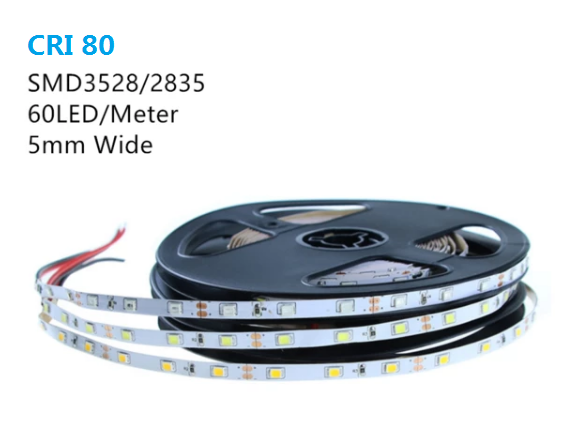

CRI80 2700K-6000K White Color Super Slim 5mm Wide White FPCB Background DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs 300lm Per Meter

SKU 5M-HK-5MM-F3528PW60-NW-CRI80-12

This unit does not come with power supply, you will need to buy it separatly. This item is very easy to set up. Self-adhesive back with adhesive tape for safe and easy application.
Safe to use. The working voltage is 12V. extremely low heat. It is touchable and safe to children.
Cuttable and linkable. It can be cut every 3 LEDs along the cutting marks, without damaging the rest strips
Flexible operations. Slim, compact and flexible PCB strip.
Comes with a full 12 month warranty.Very suitable for indoor lighting and decor. Such as kitchen, under cabinet, dining room, bedroom, etc.

Item :12VDC SMD3528 LED flexible strip, 300LED per 5meter per roll
LED Type : single color SMD3528
LED QTY : 60LED/Meter
Input Voltage :12V DC
Wattage (max) :4.8Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 8*2
Weight : 0.15kgs per 5meter per roll
Lumen Output :200LM/Mtr @Warm White,250LM/Mtr @NaturalWhite, 300LM/Mtr @Pure White
Light Color : Pure White(5500-6500K), Warm White(3000-3500K),Warm White(2700K), Natural White(4000-4500K),
CCT: 2700K-6500K
PCB color option : White
PCB Backing : Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
Beam Angle :120°
Dimming : PWM dimmable (more information please refer to different Dimmer applications)
Waterproof Type : Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
Pre-wiring : 20cm Red/Black Lead wire at one end of the strip
Packing : 5meter per roll packed in a static bag

Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

 Waterproof Strip Dimension


*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch


Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
