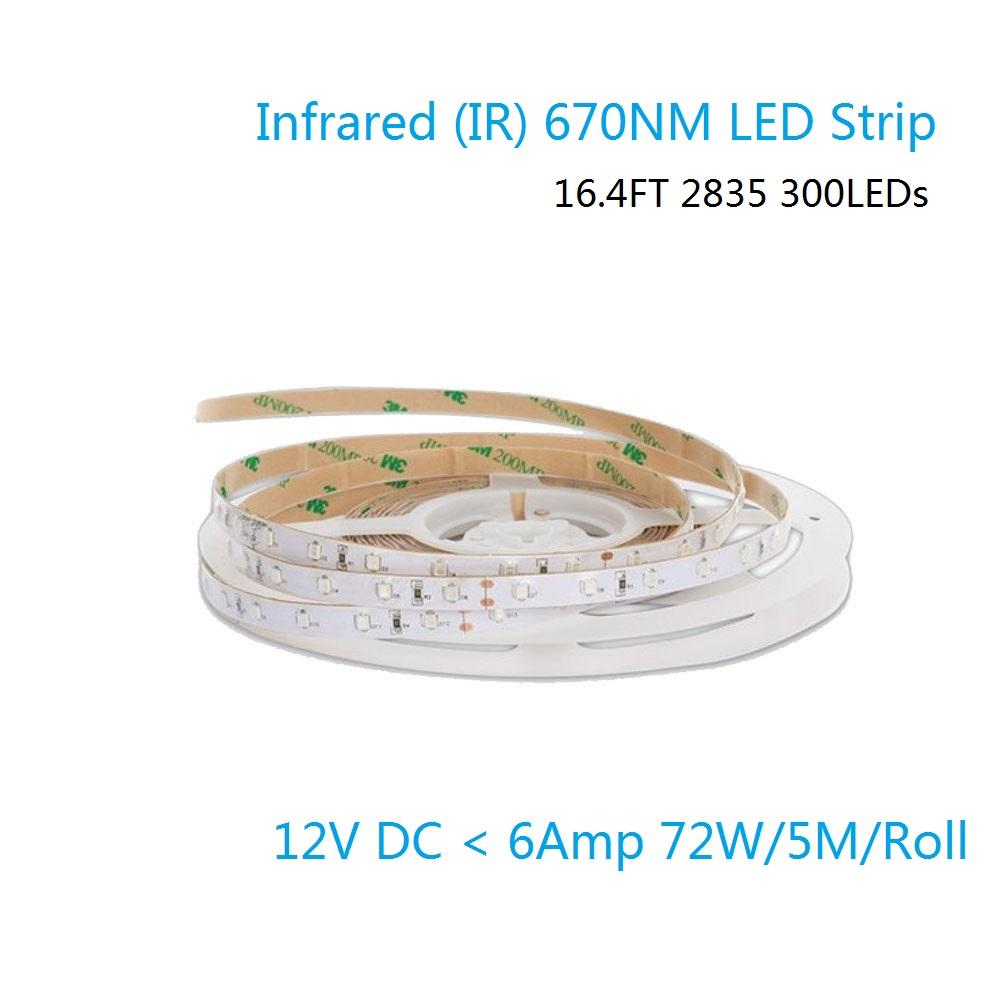

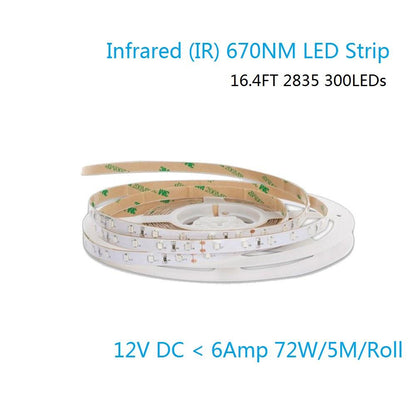

DC 12V Dimmable 670NM Red SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 12W Per Meter

$99.00
SKU 5M-HK-8MM-F2835-670-30-NW-IR-12
Length
Waterproof

DC 12V Dimmable 670NM Red SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 12W Per Meter 5Amp 60W/roll

Technical Specification

Other Features

● PCB Backing :Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
● Lead : Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
● Pre-wiring : 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip.
● Weight : 0.2kgs/roll for non-waterproof; 0.3kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.

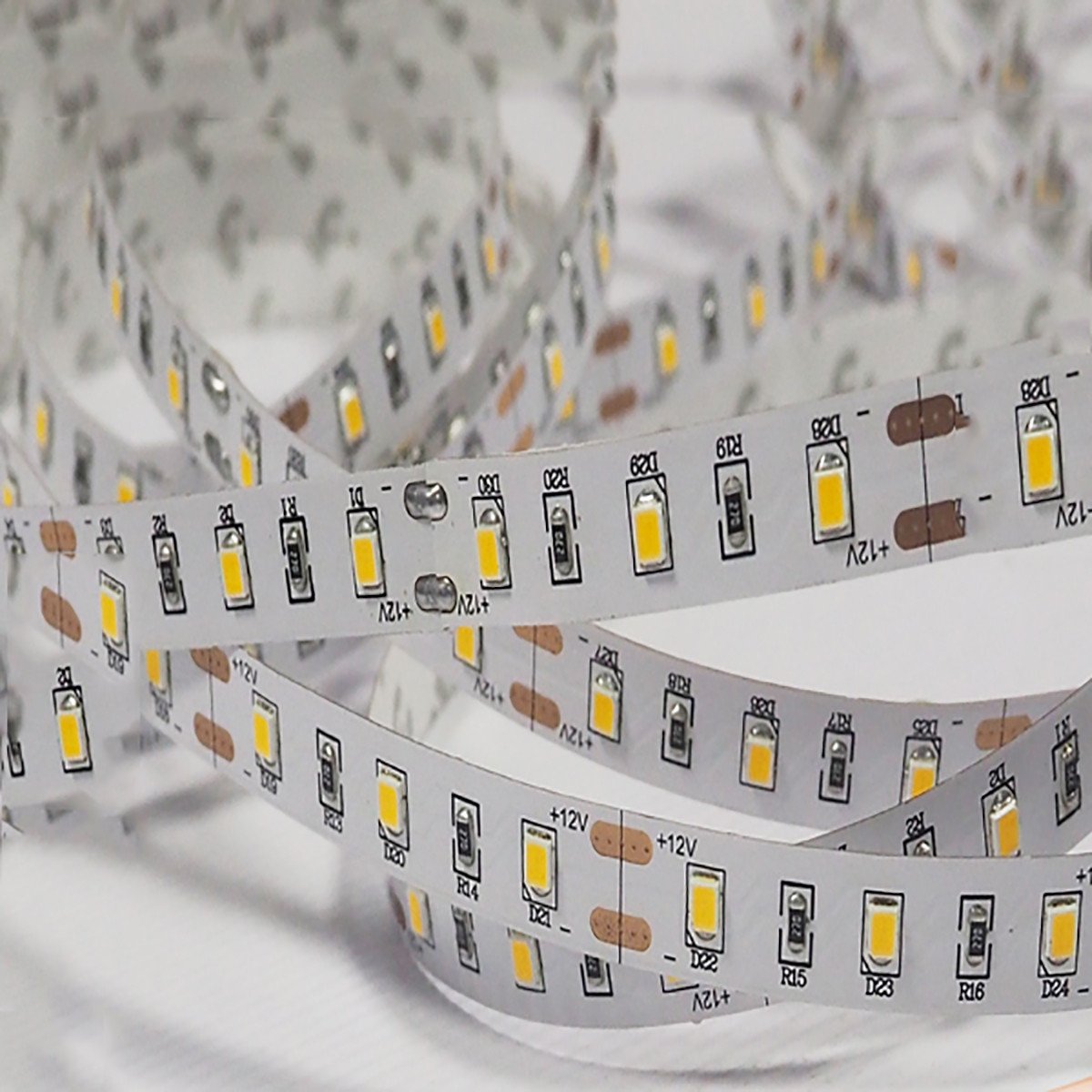

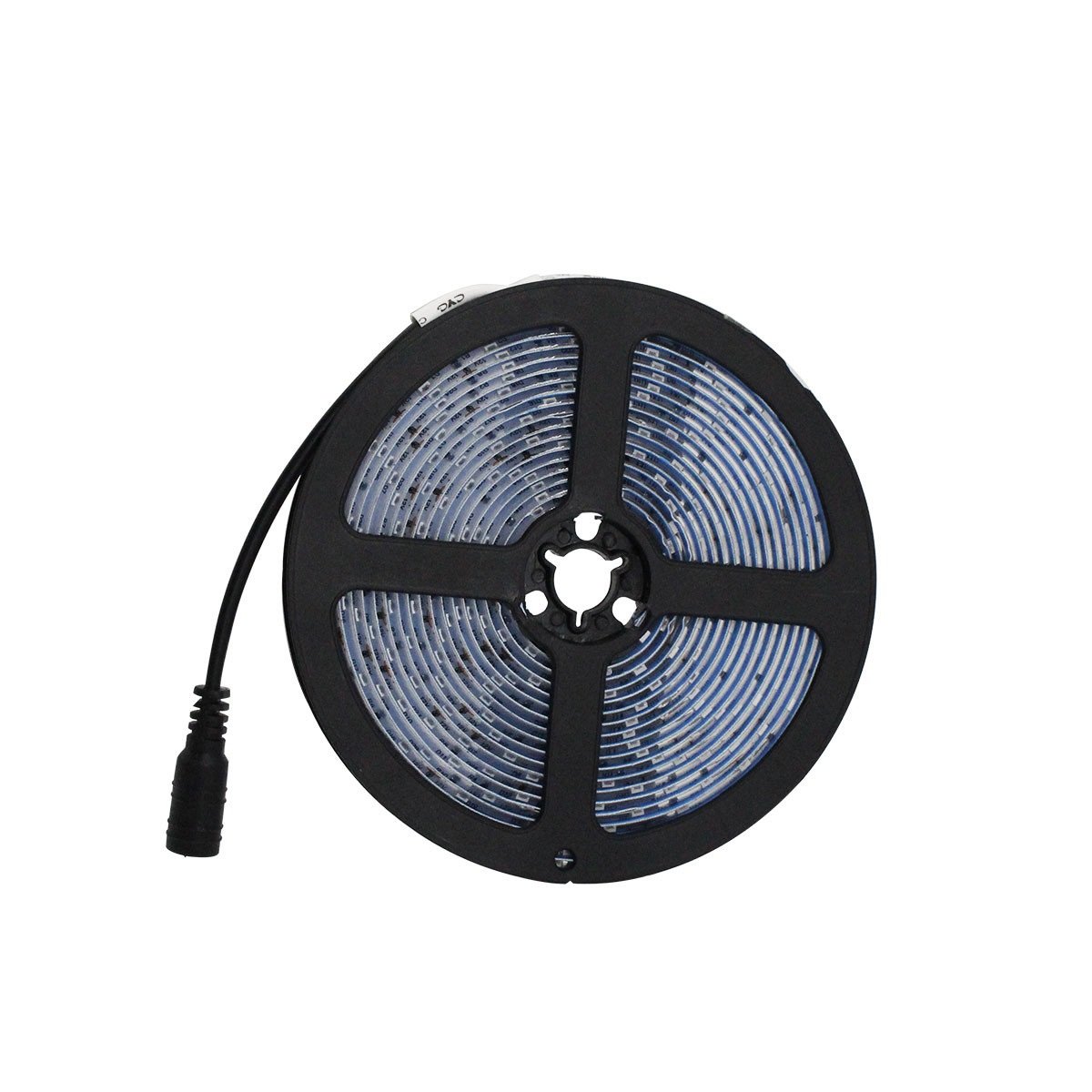

SMD2835, 300Leds/reel,  670NM Red ,Flexible LED Strip, 3-LED Cuttable, DC12V, 60W/reel, 5A/reel, 120°, 5m/reel, width 8mm, On PCB with self-adhesive backing .
 This product need a 12v 6amp 72watt LED power supply  to power 1 reel (5 meters). And if you will cut the strip light, you can use some 8mm LED Strip Connectors for re-connection.

These 12 volt Flexible LED Strips are sold in 0.5,1,2,3,4 and 5 meters, if you need custom length, please contact us.

Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

Applications

*For surveillance or security

*For the multitouch display

*For Night Version Light



Features

*Can be cut into 3-LED segments

*Adhesive backing

*12VDC Operation

*Dimmable - See our Dimmer Selection

Safty Tips

*Always disconnect power supply before cutting/connecting LED Light Strips.

*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm

*Do not connect LED Light Strips directly to 120V AC power.

*Apply power to test LED Light Strips before mounting.



Waterproof Strip Dimension



*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
