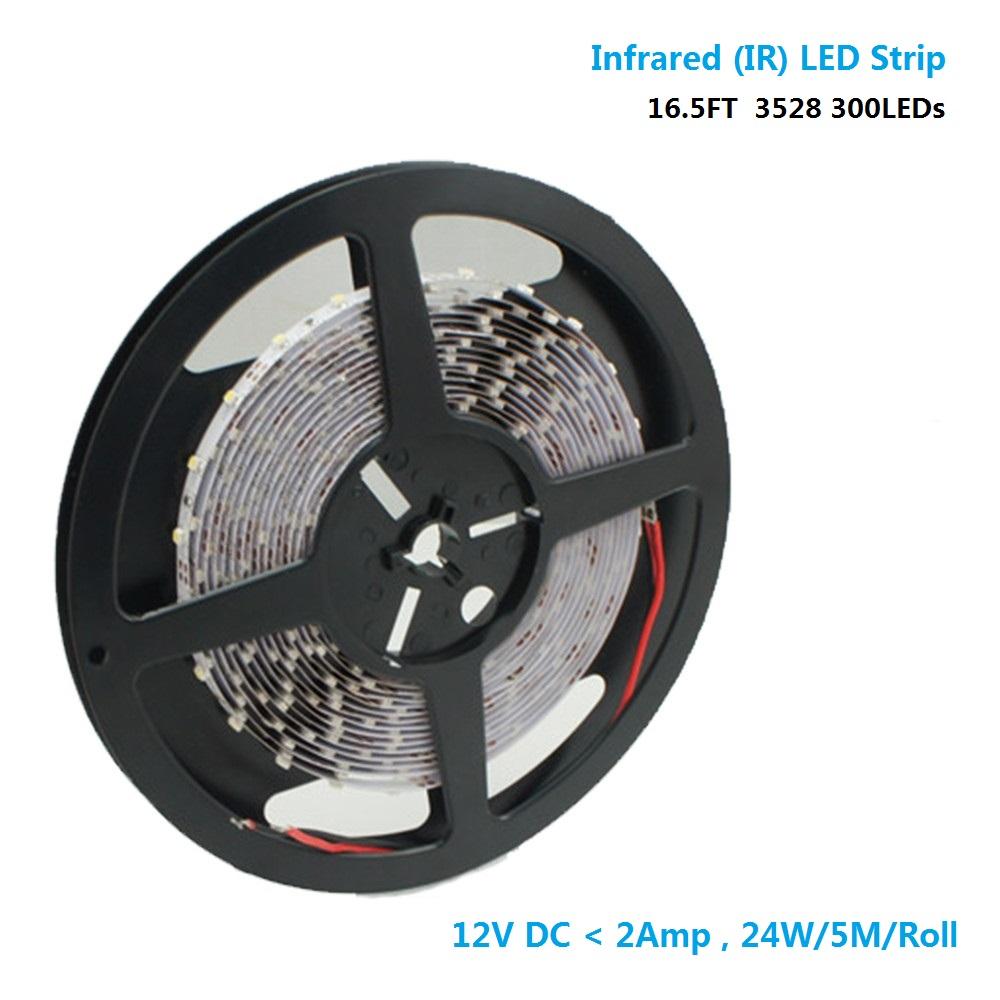

DC12V SMD3528-300-IR InfraRed (850nm/940nm) Single Chip Flexible LED Strips 60LEDs 4.8W Per Meter

$4.90
SKU 0.5M-HK-8MM-F3528-850-30-NW-IR-12
Length
Color
Waterproof

LEDLIGHTSWORLD infrared 850nm/940nm LED strip.This popular LED strip light has 60 bright 3528 per meter. Available in 50cm, 100cm, 200cm, 300cm, 400cm and 500cm lengths with yellow, black, or white finish options. Special lengths requirement can be customized. Non-weatherproof, Waterproof IP65/IP67 and IP68 flexible light strips with adhesive backing, can be cut into 3-LED segments(2inch long). 12VDC operation. Dimmable with compatible LED dimmers.

NOTE:

1) The Infrared LED Strip is invisible light

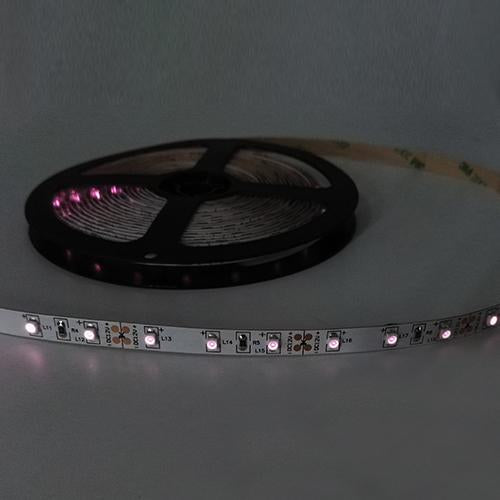

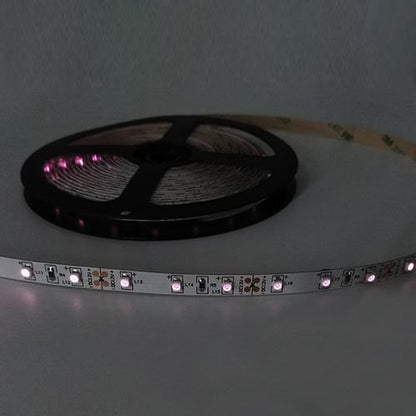

2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot

Technical Specification
Wattage 4.8W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD3528 Strip Section 3LED per 2inch
WxH 8x2(mm) LED QTY.: 60LED/Meter
Length Available 0.5 to 5 Meter Available Color 850nm and940nm
Protection Grade Non-waterproof, IP65, IP67, IP68 PCB Background Yellow, White,  Black



Other Features
Item DC12V SMD3528-300-IR InfraRed (850nm/940nm) Single-Chip Flexible LED Strips 60LEDs 4.8W Per Meter
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip



Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

Product Applications, Features and Safty Tips

Applications

*For surveillance or security

*For the multitouch display

*For Night Version Light



Features

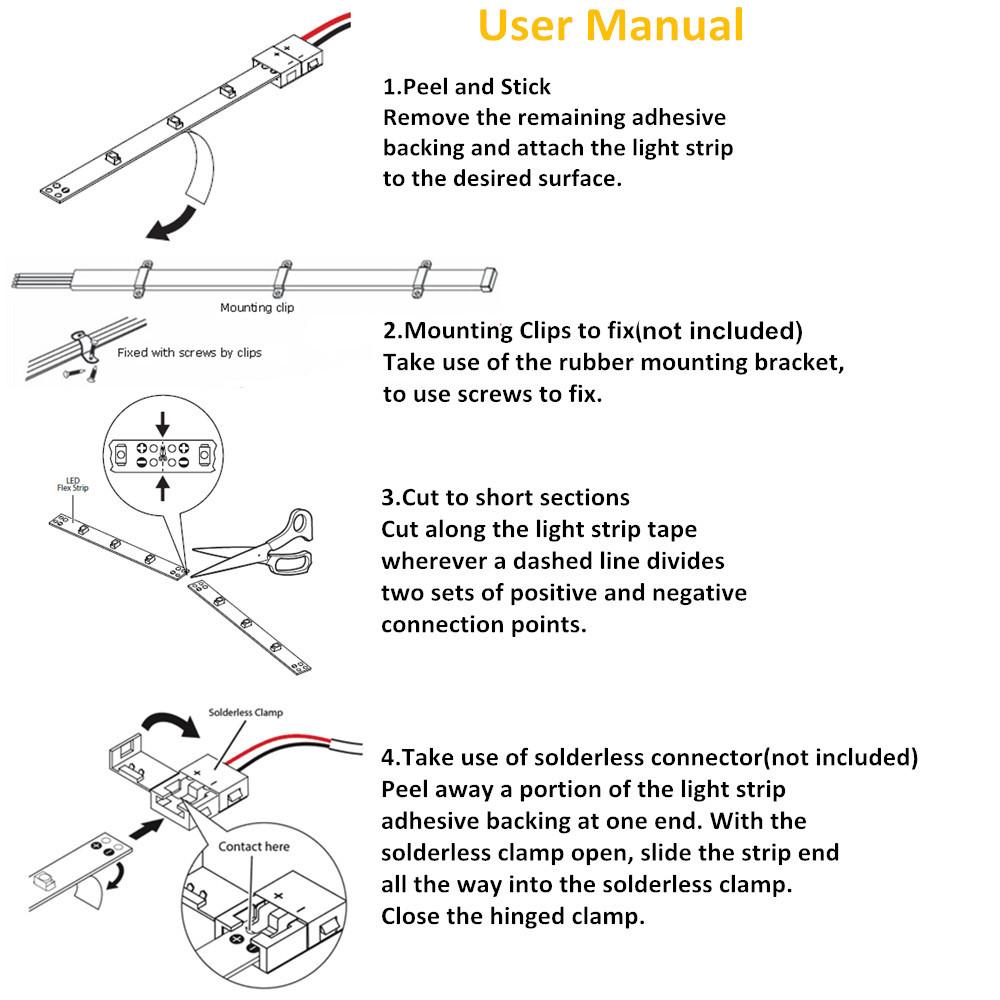

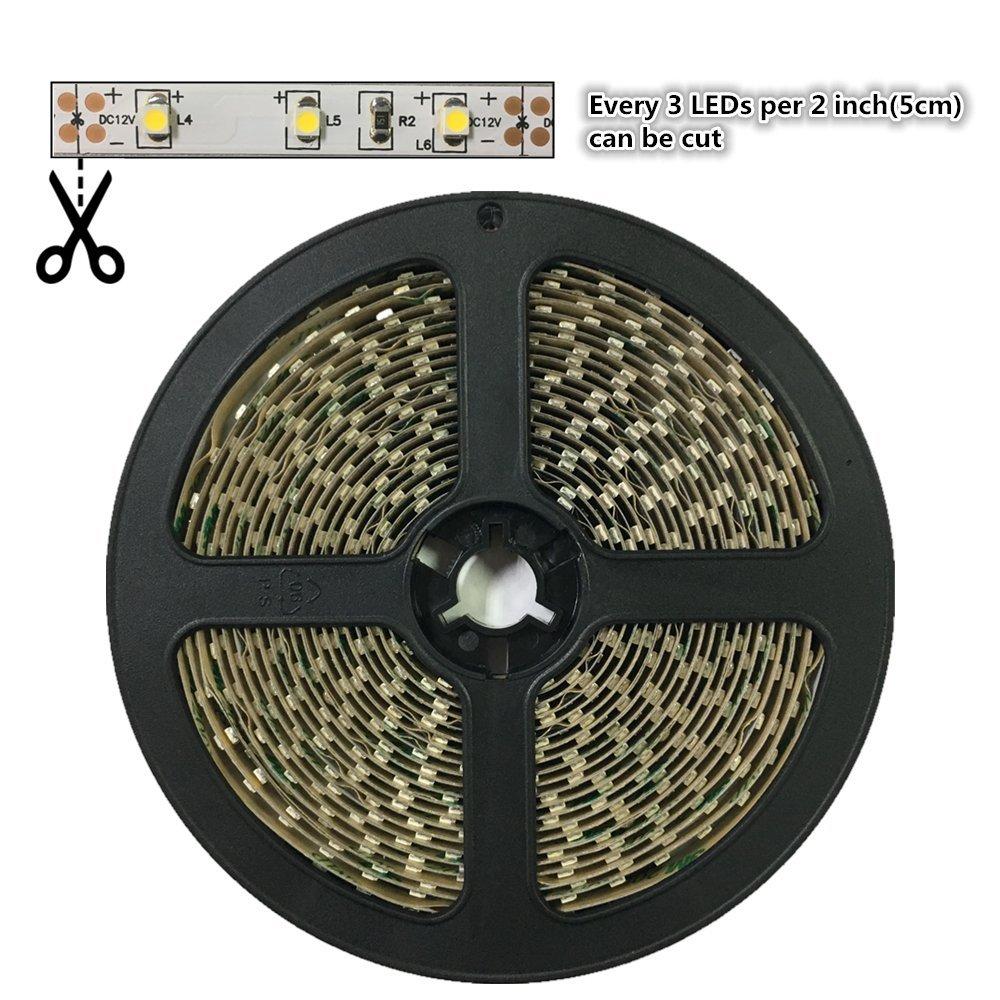

*Can be cut into 3-LED segments

*Adhesive backing

*12VDC Operation

*Dimmable - See our Dimmer Selection

Safty Tips

*Always disconnect power supply before cutting/connecting LED Light Strips.

*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm

*Do not connect LED Light Strips directly to 120V AC power.

*Apply power to test LED Light Strips before mounting.



Waterproof Strip Dimension

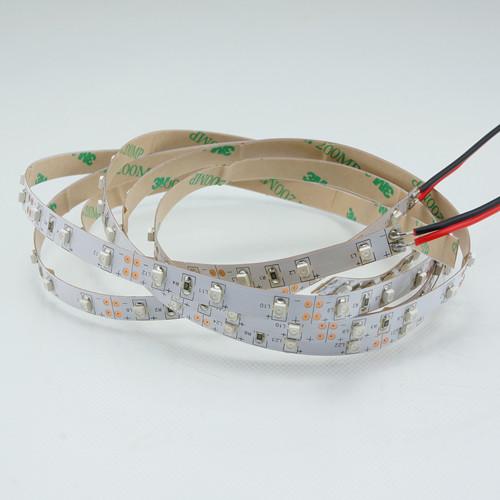

*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

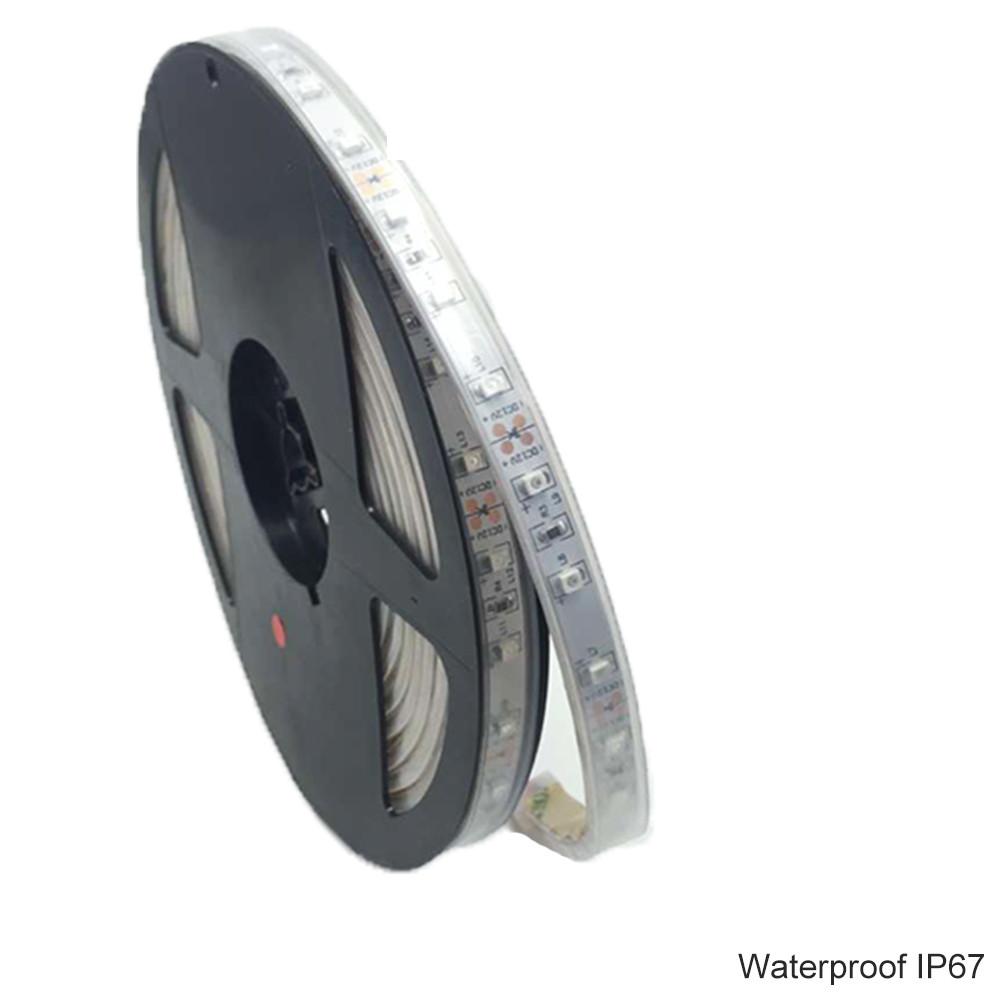

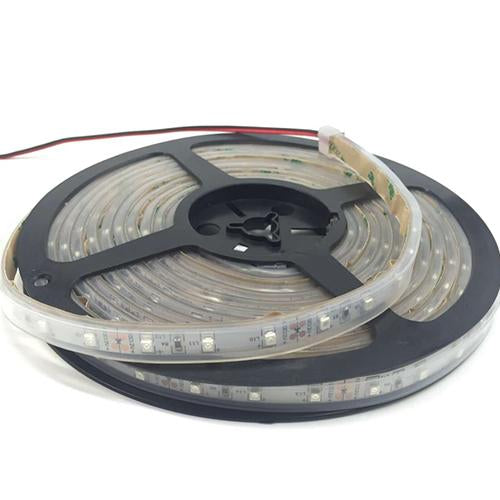

*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
