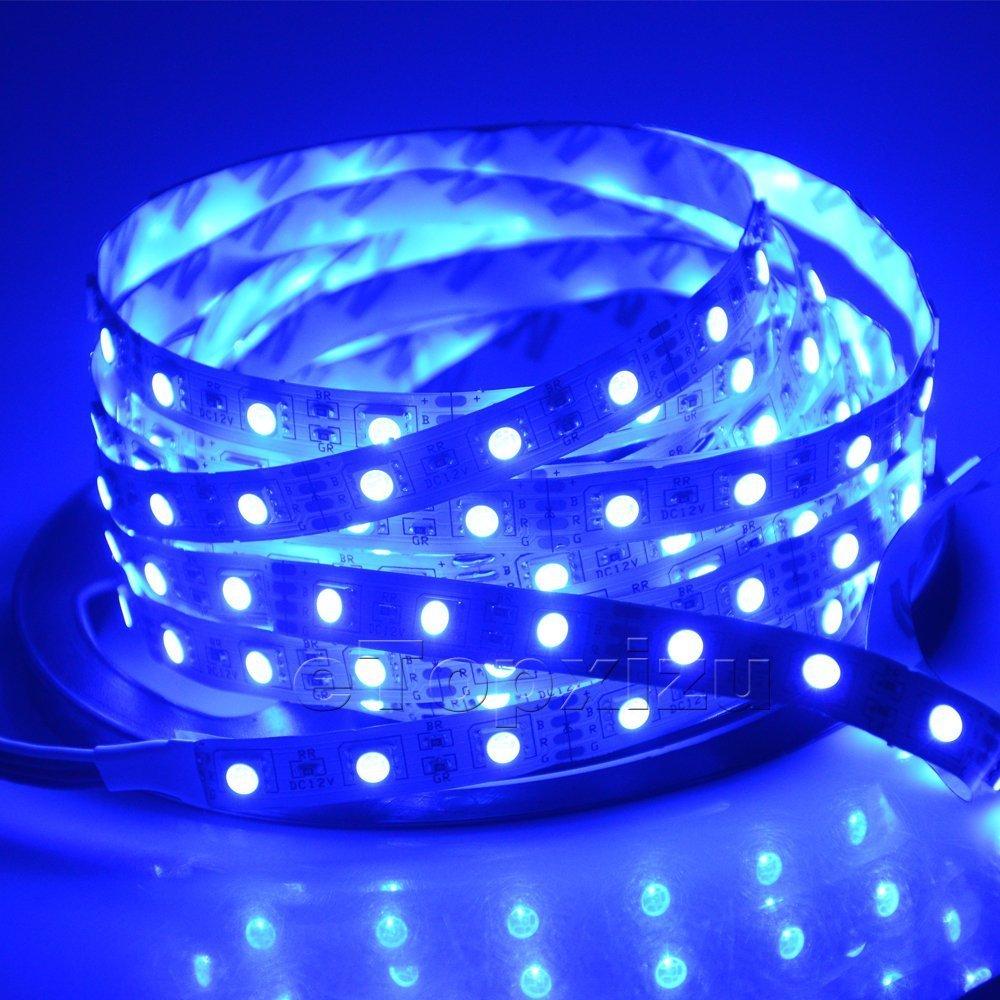

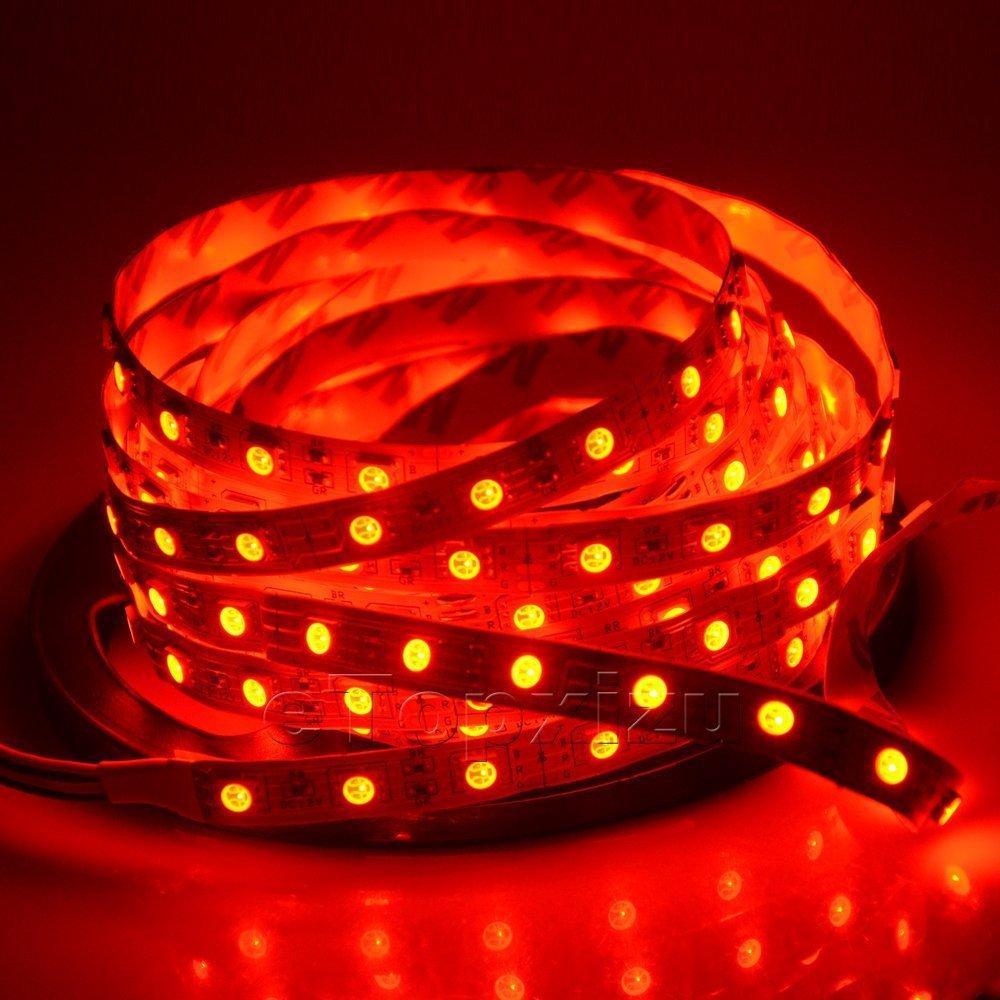

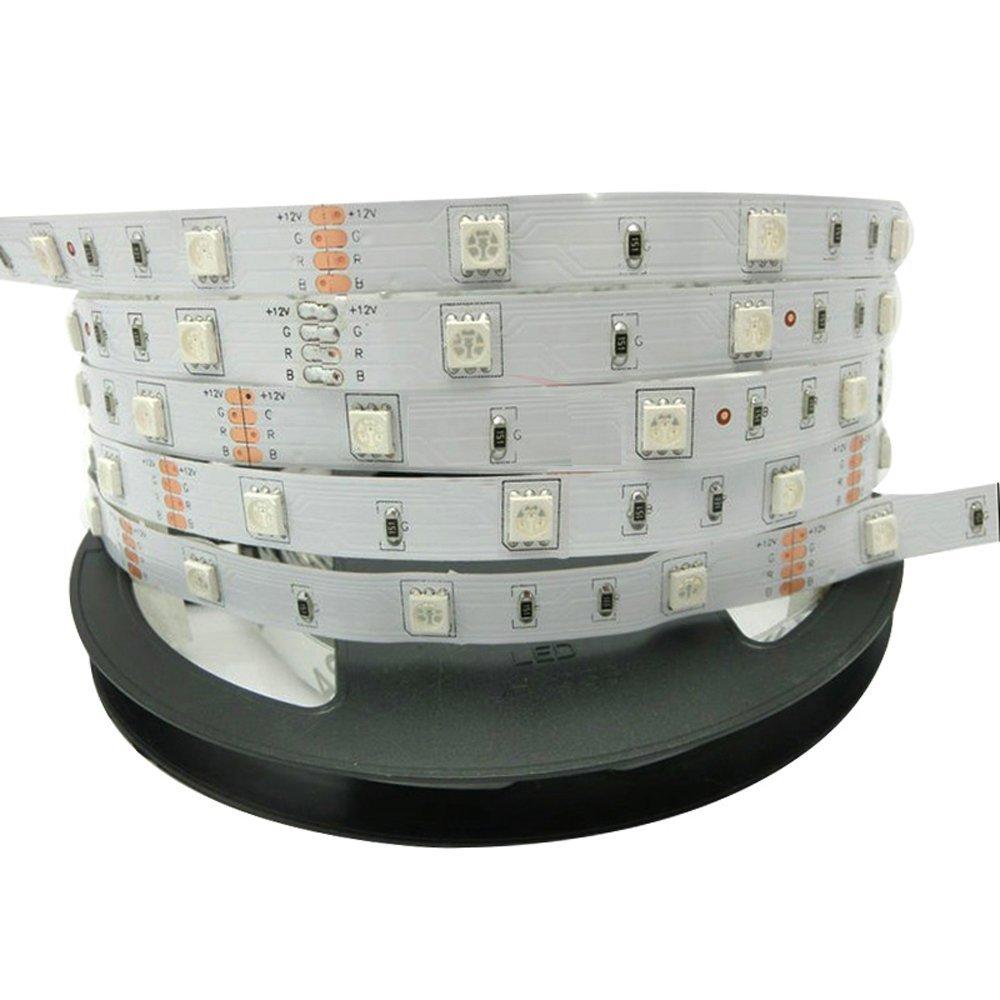

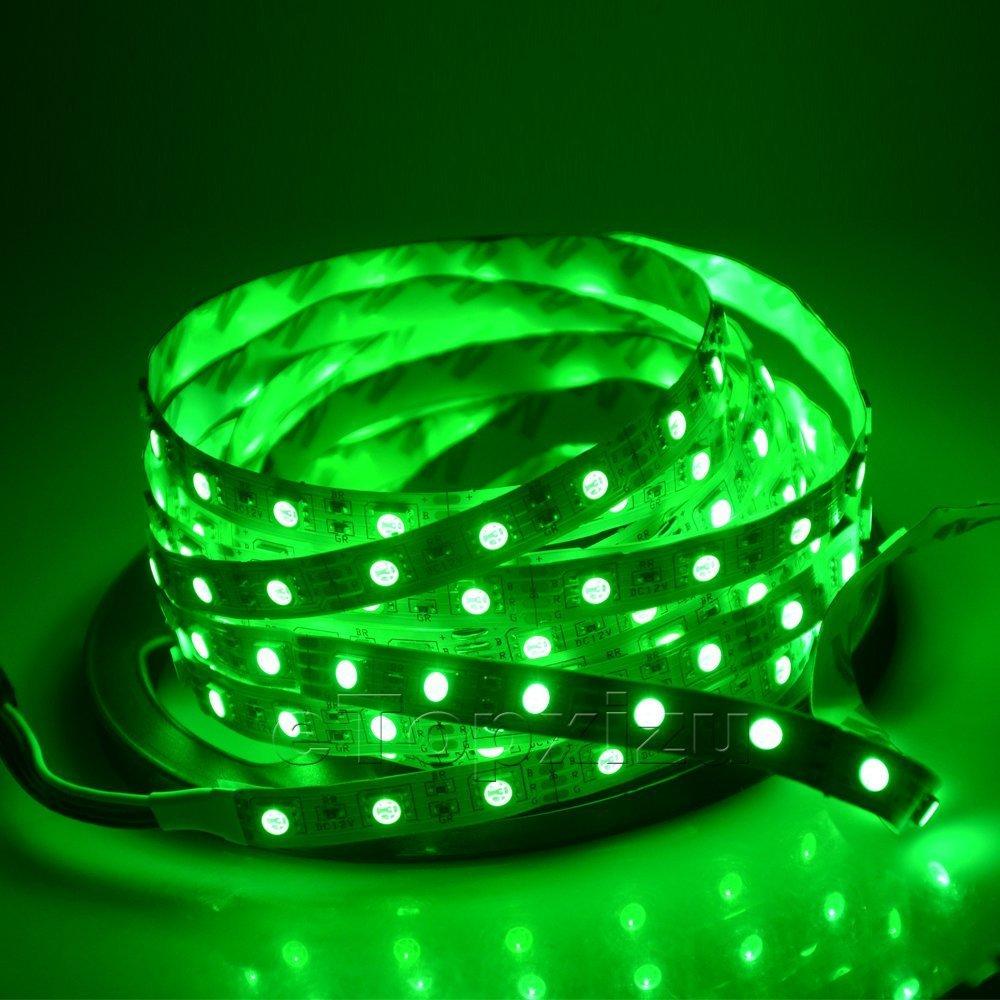

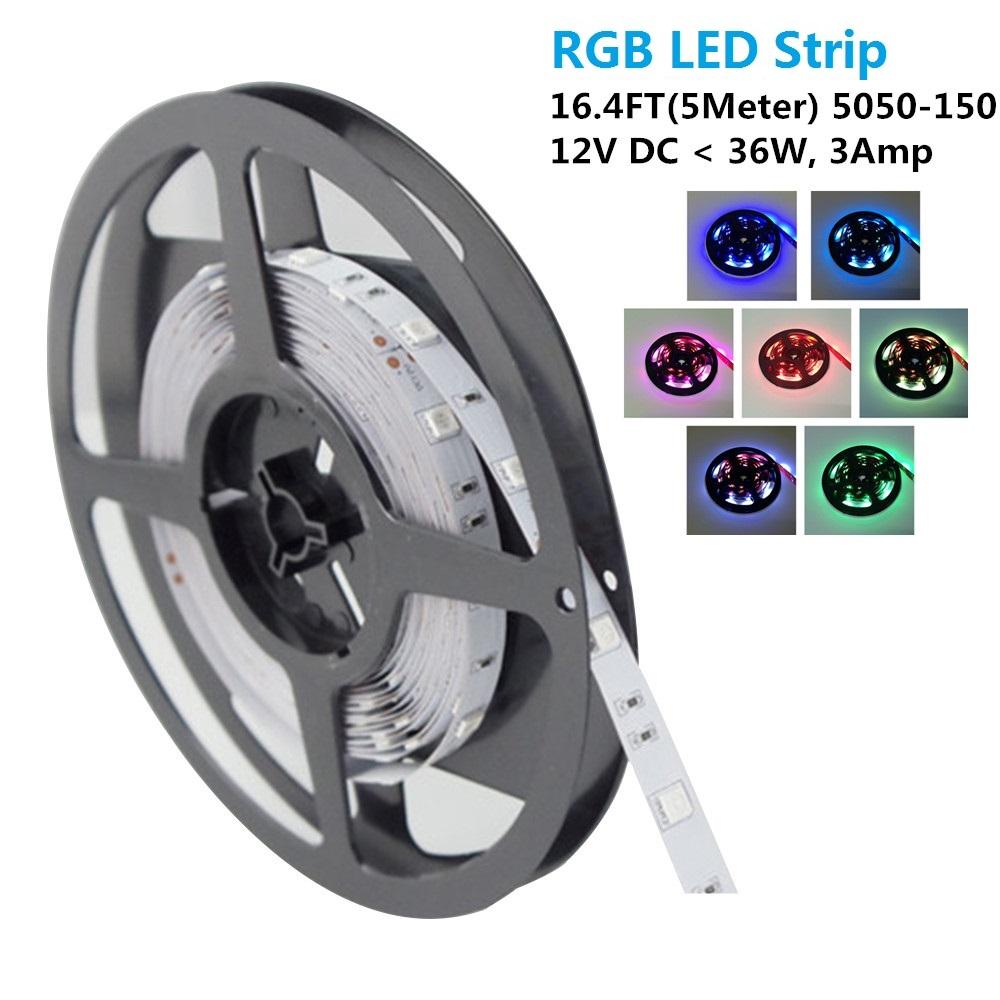

SMD5050-150 RGB Color Change Tri-Chip Flexible LED Strips 30 LEDs Per Meter 10mm Width
*Length: SMD5050-150LED per 16.4FT(5Mtr)
*Power: 12VDC <36W 3Amp
*12V DC operating, need to work with 12V transformer if run to wall oulet (non included)
*IP Protection:Non-Waterproof, Waterproof IP65, IP67 and IP68 available

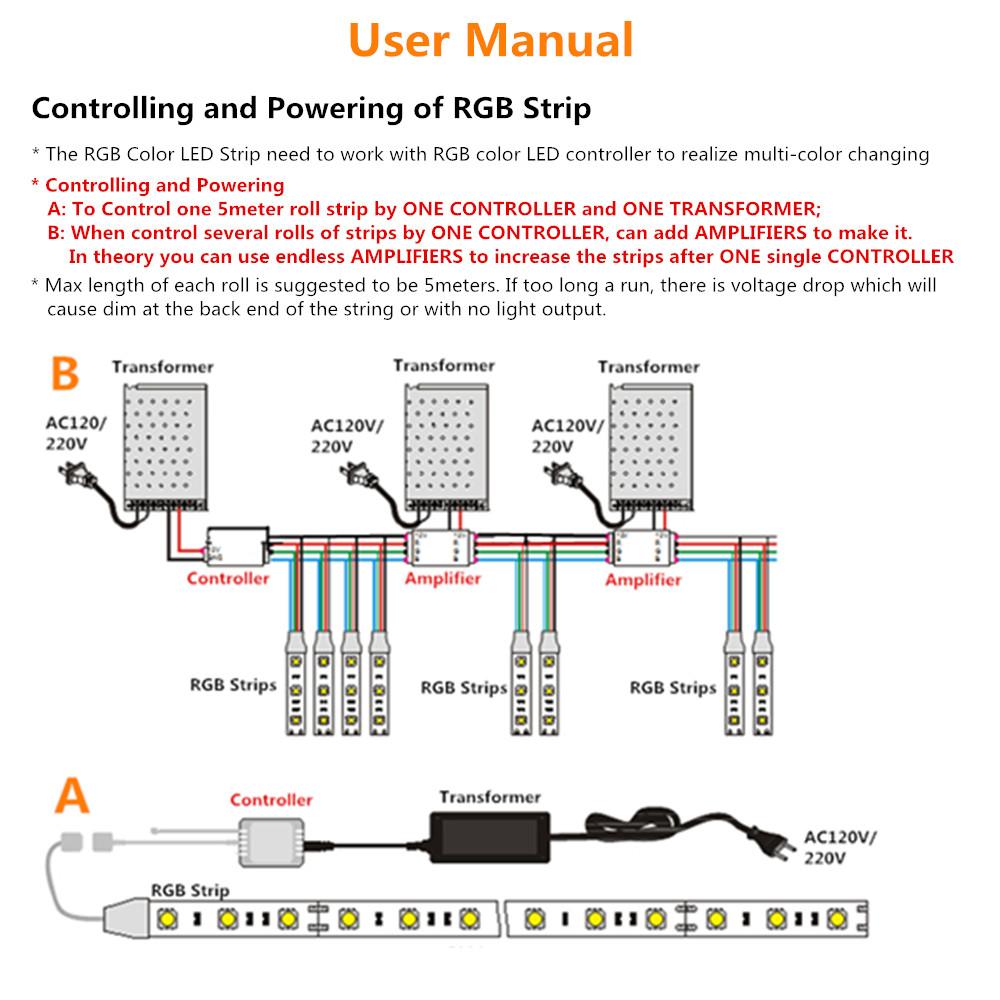

*Control: Need to work with matched RGB controller(non included)

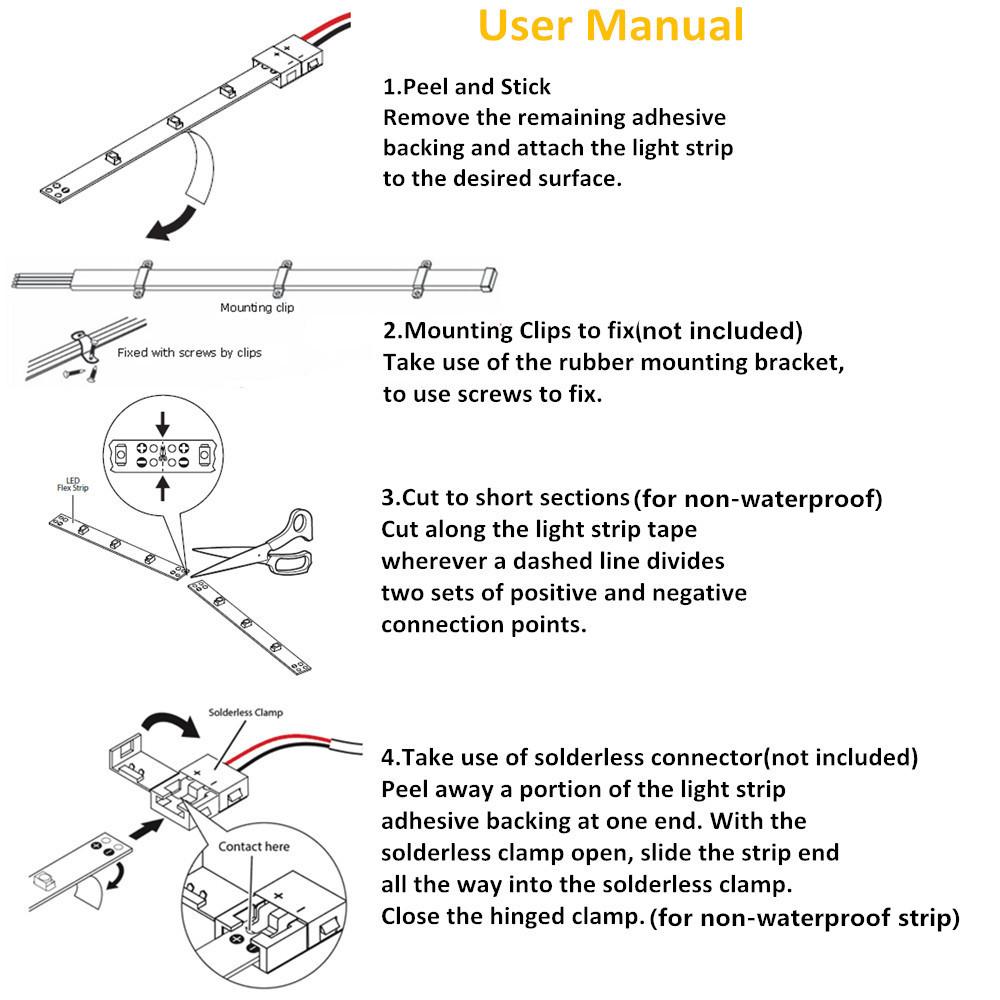

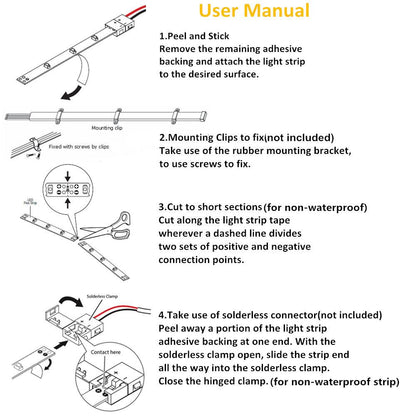

*Easy Installation: With double-sided adhesive tape back, very sticky that fit for various mounting materials
SMD5050-150 RGB Color Change Tri-Chip Flexible LED Strips 30 LEDs Per Meter
|LED Type||SMD5050||Strip Section||3LED per 4inch|
|Length Available||5 Meter||Color||RGB|
|Protection Grade||Non-waterproof, IP65, IP67, IP68||PCB Background||Yellow, White, Black|
|Item||RGB Color Changing 12VDC < 36W, 3Amp SMD5050 300 LED flexible strip, 5meter per roll|
|Weight||0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.|
|PCB Backing||Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).|
|Lead||Single color strip has two contacts(V+,V-) and is Polarity Sensitive.|
|Pre-wiring||20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip|
• 1x 5meter per roll LED Flexible Strip
• Widely used for home, hotels, clubs, shopping malls
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration
• Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
• Amusement park, theater and aircraft cabin mood lighting
• Applicable for automobile, boat and bicycle decoration
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
